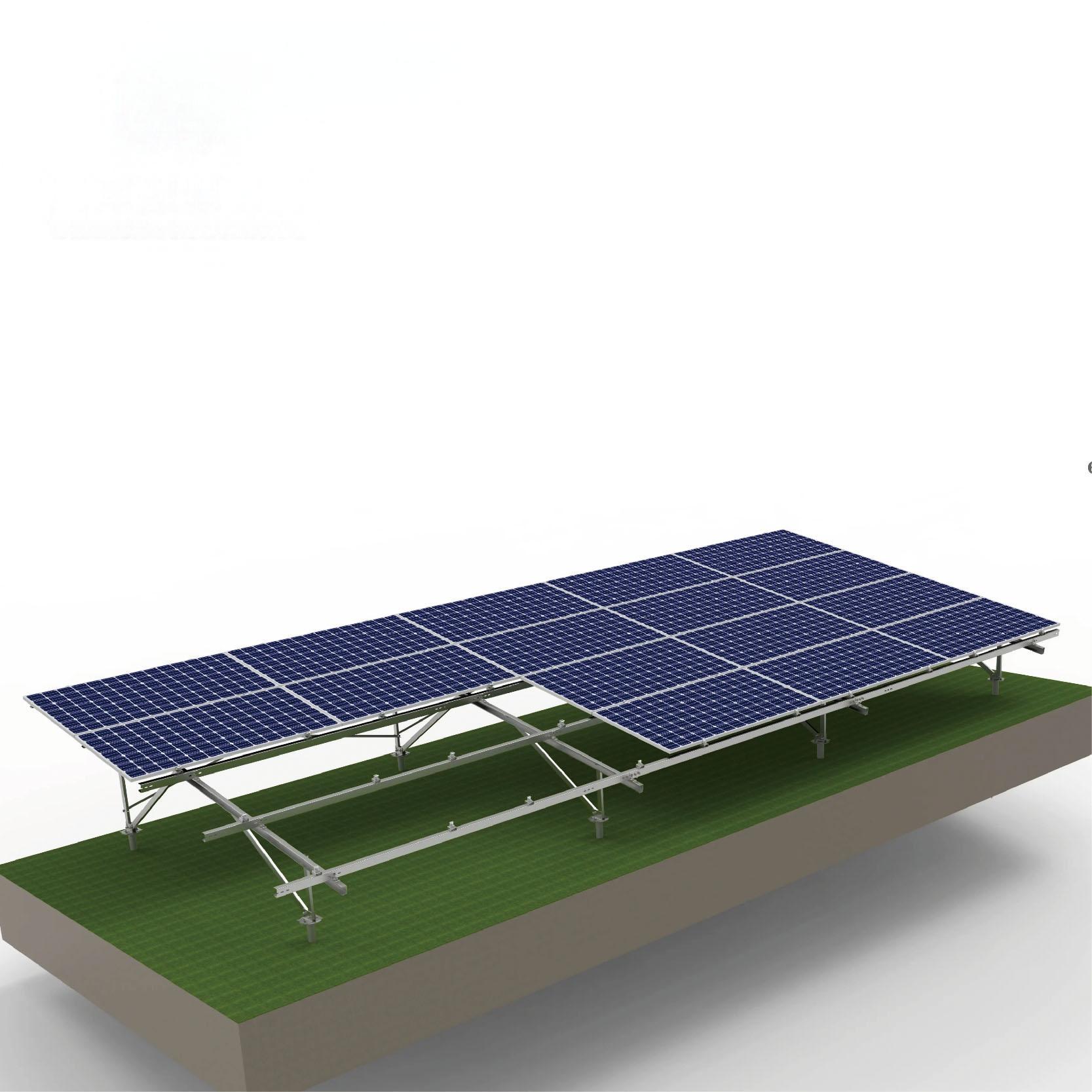

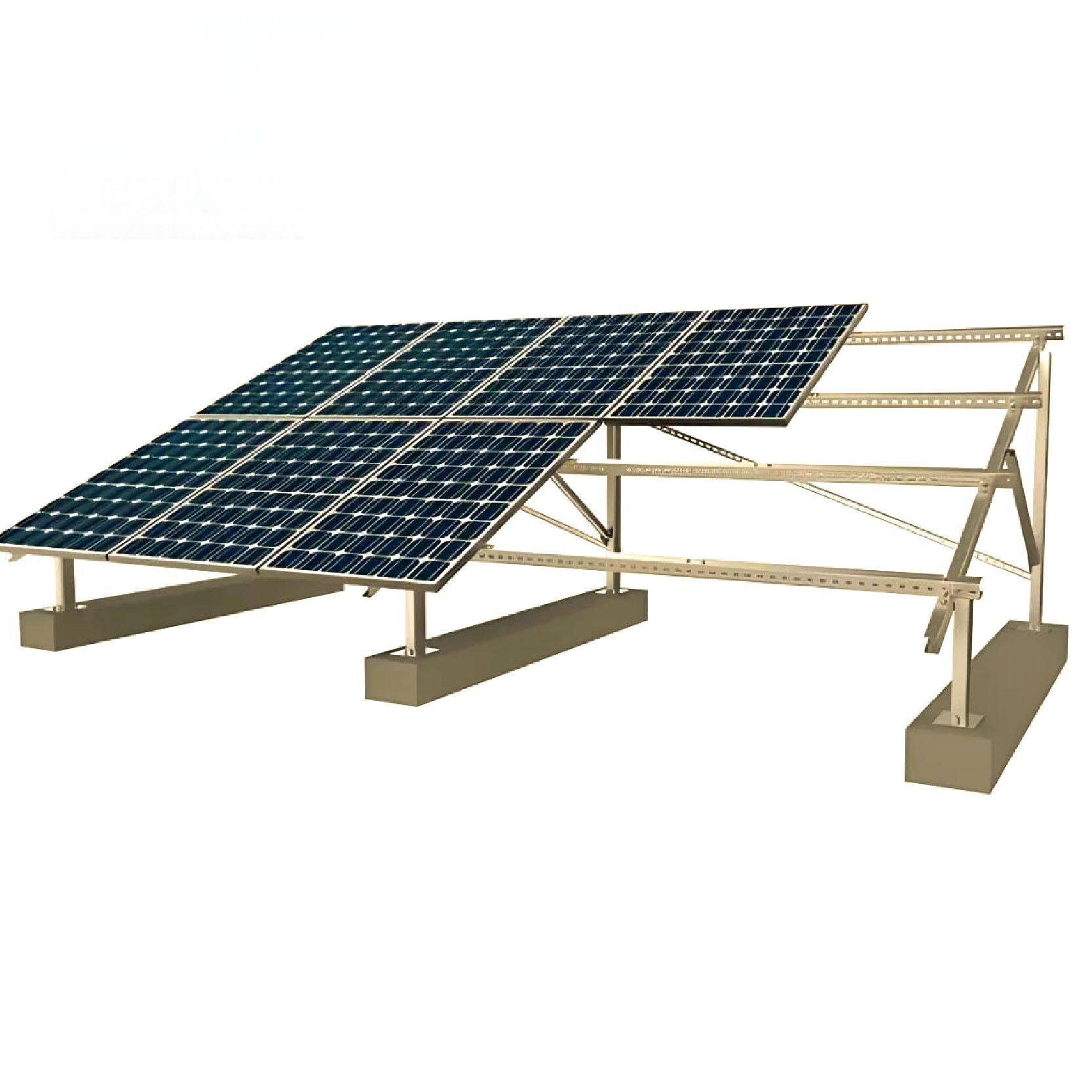

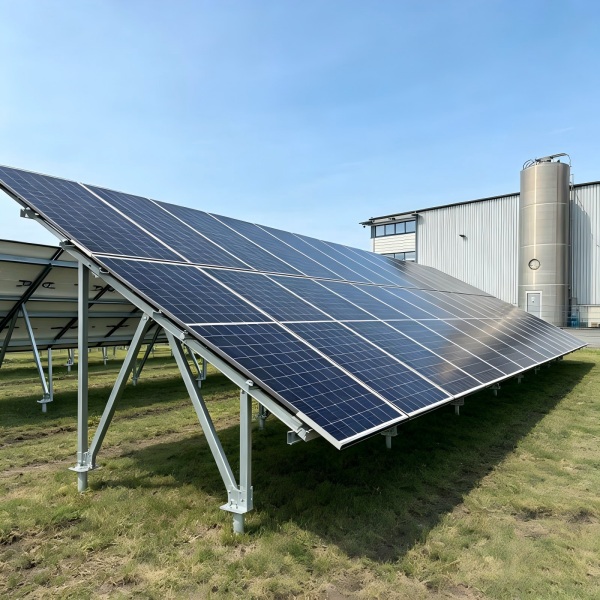

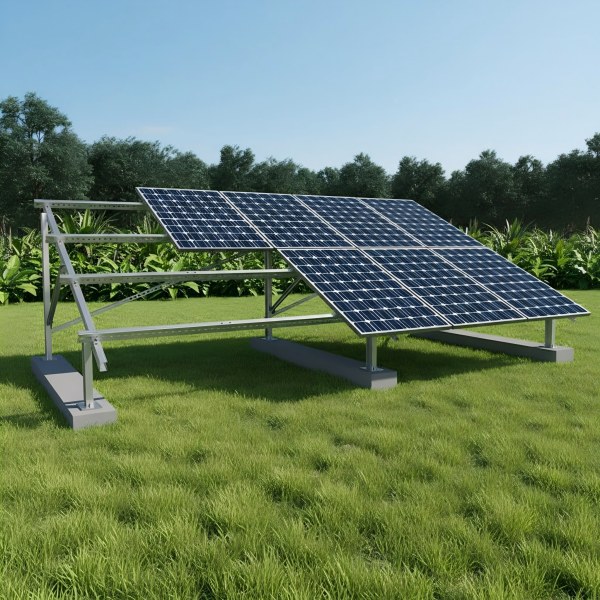

ZAM Ground Installation Bracket

>> Product Advantage

1. Superior ZAM Anti-Corrosion Performance

The structure is manufactured from ZAM (Zinc-Aluminum-Magnesium) coated steel, offering significantly higher corrosion resistance than traditional galvanized steel. This ensures long-term durability in coastal, desert, and high-humidity environments, reducing maintenance costs and extending service life.

2. High Structural Strength & Wind Load Capacity

Engineered with optimized section design and reinforced connections, the system delivers excellent mechanical strength and stability. It performs reliably under high wind loads and heavy snow conditions, ensuring safe and continuous operation of photovoltaic modules in large-scale projects.

3. Flexible Tilt Angle & Site Adaptability

The ground installation bracket supports adjustable or customized tilt angles to maximize solar energy output based on local latitude and terrain. It can be adapted to uneven ground, slopes, or different soil conditions, making it suitable for various project sites.

4. Fast Installation & Modular Design

With a standardized and modular design, the system allows quick assembly using fewer components and simple tools. Pre-punched holes and bolt connections reduce on-site labor time, improving installation efficiency and lowering overall project costs.

5. Cost-Effective & Low Maintenance Solution

Thanks to its durable material, optimized structure, and efficient installation process, the ZAM Ground Installation Bracket offers an excellent balance between performance and cost. Minimal maintenance requirements make it ideal for long-term, utility-scale solar power plants.

>> Technical Parameters

>> Product Uses

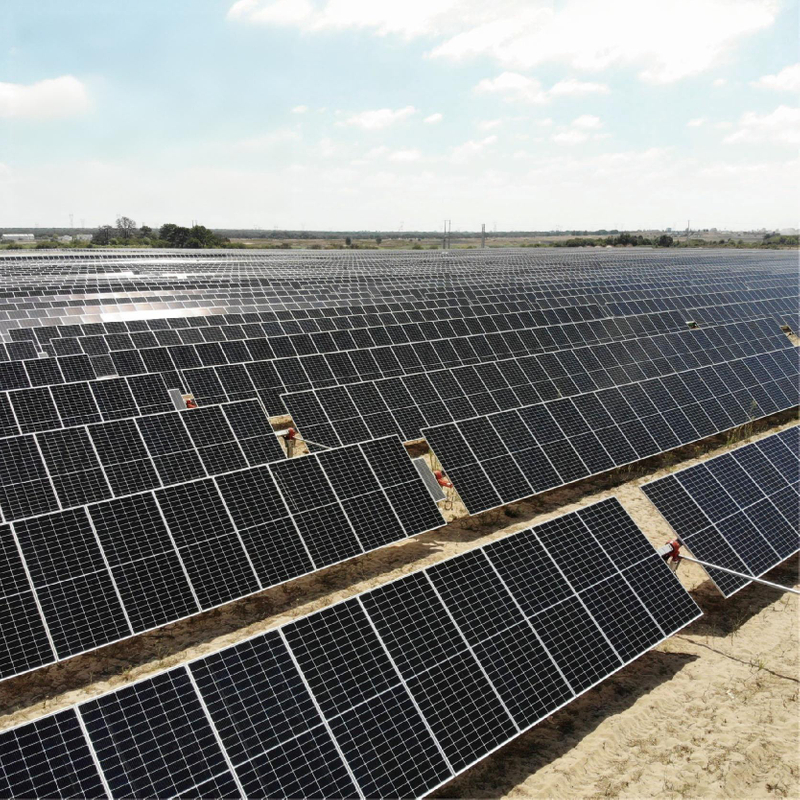

1. Utility-Scale Solar Power Plants

Widely used in large ground-mounted photovoltaic power stations, providing stable support for solar panels in open areas. The structure ensures high load capacity, long service life, and reliable performance for long-term power generation projects.

2. Industrial & Commercial Solar Projects

Suitable for factories, warehouses, logistics parks, and industrial zones with available land. The system allows flexible layout and fast installation, helping enterprises reduce energy costs and achieve sustainable energy goals.

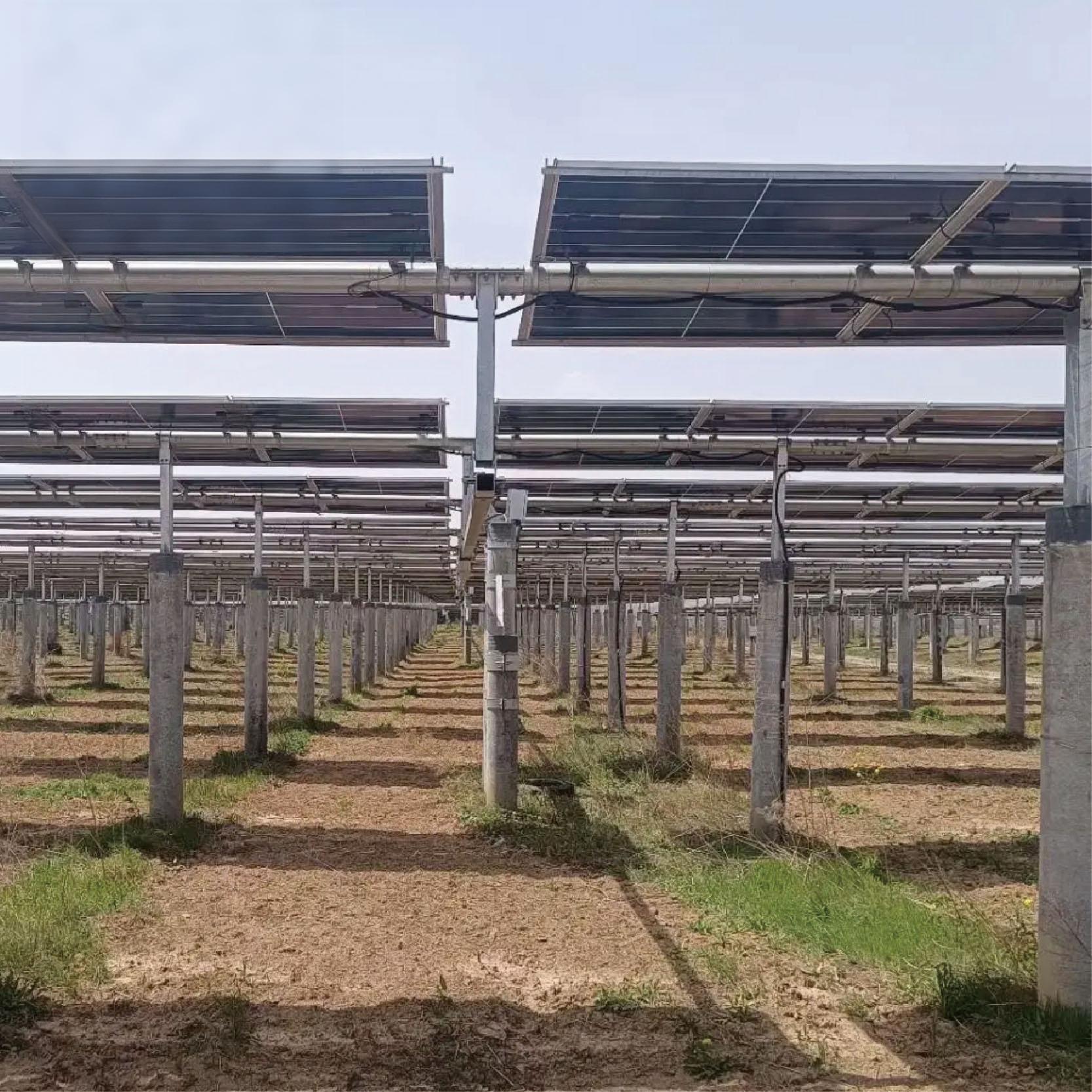

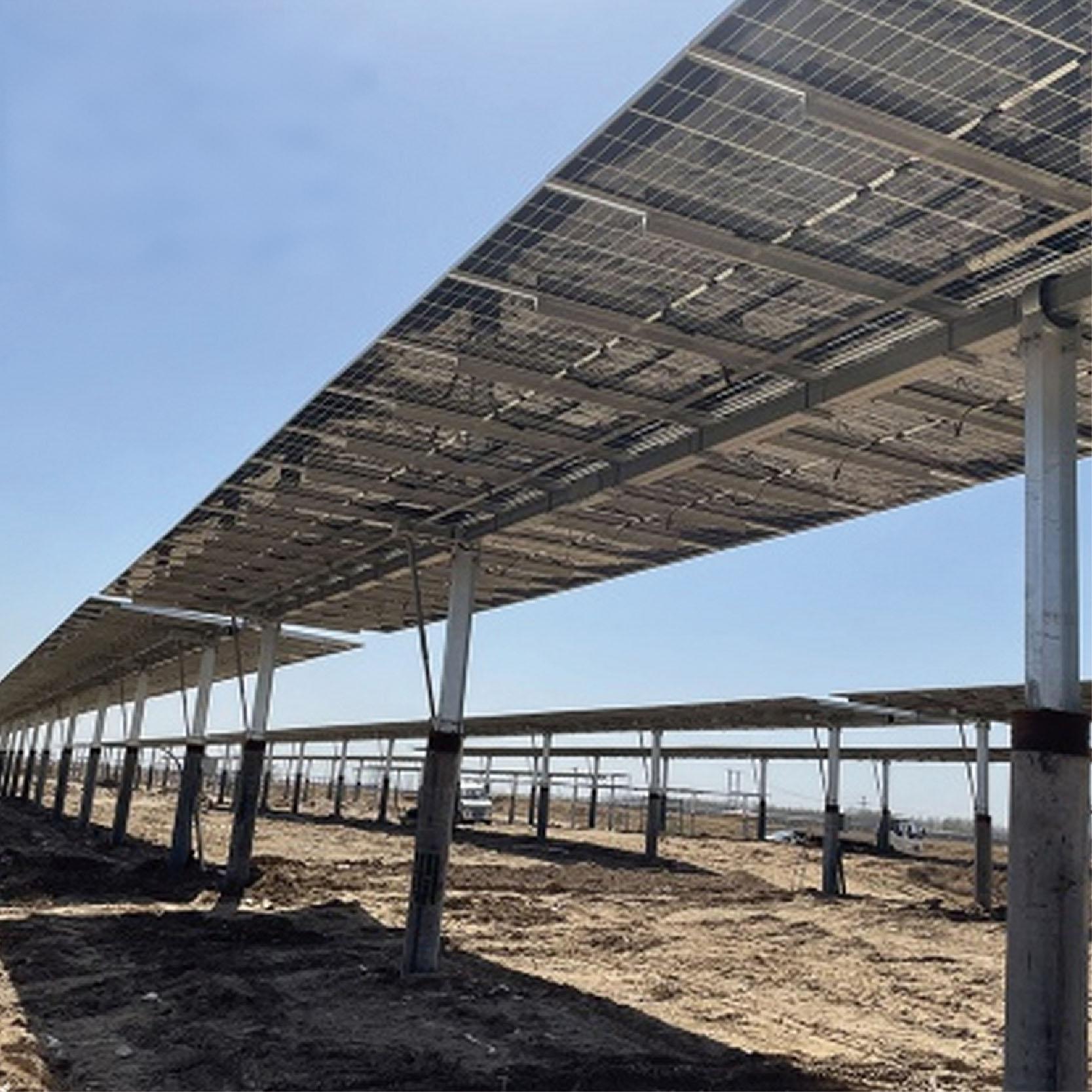

3. Agricultural & Agro-Photovoltaic Fields

Applied in farmland, agricultural parks, and agro-PV projects, where solar panels are installed above crops or unused land. The ground mounting structure adapts well to different soil conditions without affecting agricultural activities.

4. Remote & Unused Land Installations

Ideal for deserts, wasteland, hills, and remote areas with abundant sunlight. The corrosion-resistant ZAM material ensures stable operation in harsh environments, making it suitable for long-term outdoor deployment.

>> Product Operate Guide

1. Site Survey & Layout Marking

Conduct a ground survey to check soil conditions, slope, and bearing capacity. Mark the array layout, row spacing, and foundation positions according to the project design drawings.

2. Foundation Construction

Install concrete foundations, ground screws, or driven piles based on soil conditions. Ensure foundation depth, verticality, and spacing meet design and load requirements.

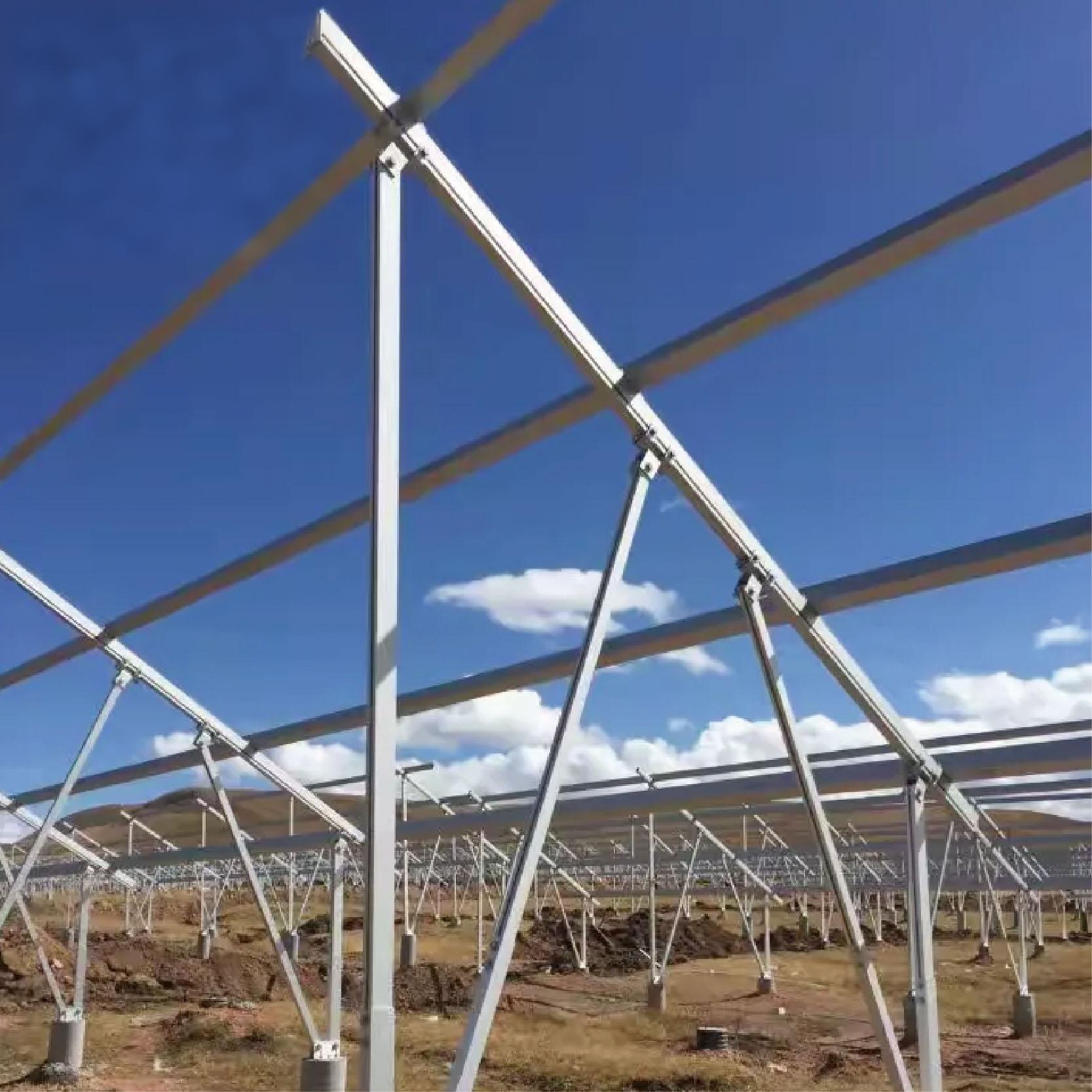

3. Main Structure Installation

Fix the vertical posts or columns onto the foundations, then install beams and rails using bolts. Check alignment, levelness, and structural stability during assembly.

4. Mounting Rail & Tilt Adjustment

Install mounting rails and adjust the tilt angle as required for optimal solar performance. Tighten all fasteners to the specified torque.

5. PV Module Installation

Place solar panels onto the rails and secure them with mid clamps and end clamps. Ensure correct panel spacing and alignment.

6. Final Inspection & Commissioning

Check bolt tightness, grounding, and overall stability. Complete electrical connections and confirm the system is ready for operation.

>> FAQ

Q1.What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A:Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%.

Q2.Does the bracket require additional anti-corrosion treatment?

A:No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3.Can you provide a load-bearing calculation report?

A:We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A:Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5.Payment method and warranty period?

A:Accept TT/LC, with a 15 year warranty (free replacement for non-human damage)
