>> Product Advantage
1. Excellent Corrosion Resistance with Galvanized Steel
Manufactured from hot-dip galvanized steel, the floor mounting bracket provides strong protection against rust and corrosion, ensuring long-term stability in outdoor environments. This makes it suitable for coastal, humid, and high-salinity areas while reducing maintenance costs over time.
2. High Load Capacity & Structural Stability
The system is engineered with reinforced profiles and optimized connection design to withstand strong wind pressure and heavy snow loads. Its robust structure ensures safe and stable support for solar modules in large-scale and long-term photovoltaic installations.
3. Flexible Design & Wide Site Adaptability
The floor mounting bracket supports customized layouts and adjustable tilt angles based on project requirements. It can be installed on different soil types and terrains, including flat ground and mild slopes, offering excellent adaptability for diverse installation sites.
4. Fast Installation & Modular System
With a standardized modular design, pre-punched holes, and simple bolt connections, the system allows quick on-site assembly. Reduced installation time lowers labor costs and improves overall project efficiency, making it ideal for large-scale deployments.
5. Cost-Effective & Low Maintenance Solution
Combining durable materials, efficient structural design, and simplified installation, the galvanized steel floor mounting bracket delivers excellent value. Its low maintenance requirements and long service life make it a cost-effective choice for utility-scale and commercial PV projects.
>> Technical Parameters
| Galvanized Steel Floor Mounting Bracket | |||
| Material | carbon steel | Surface Treatment | Hot-dip Galvanized |
| Coating Thickness | customized | Steel Grade | customized |
| Thickness | 1.5–3.0 mm | Size | customized |
| Wind Load | 40–60 m/s、Designable | Snow Load | 1.4–1.8 kN/m²、Designable |
| Corrosion Resistancea | Anti-rust, anti-corrosion, long service life | Service Life | About 20-25 years |
| Installation Site | Open Field / Flat Ground | Module Layout | Portrait / Landscape |
| Tilt Angle | customized | Certification | ISO9001/ISO14001/ISO45001.etc |
>> Product Uses

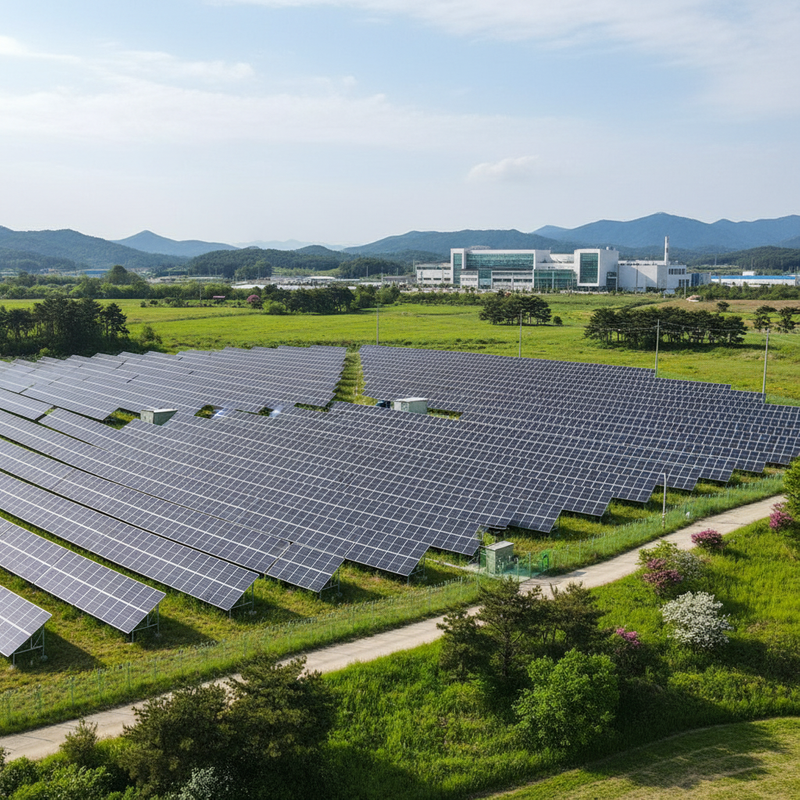

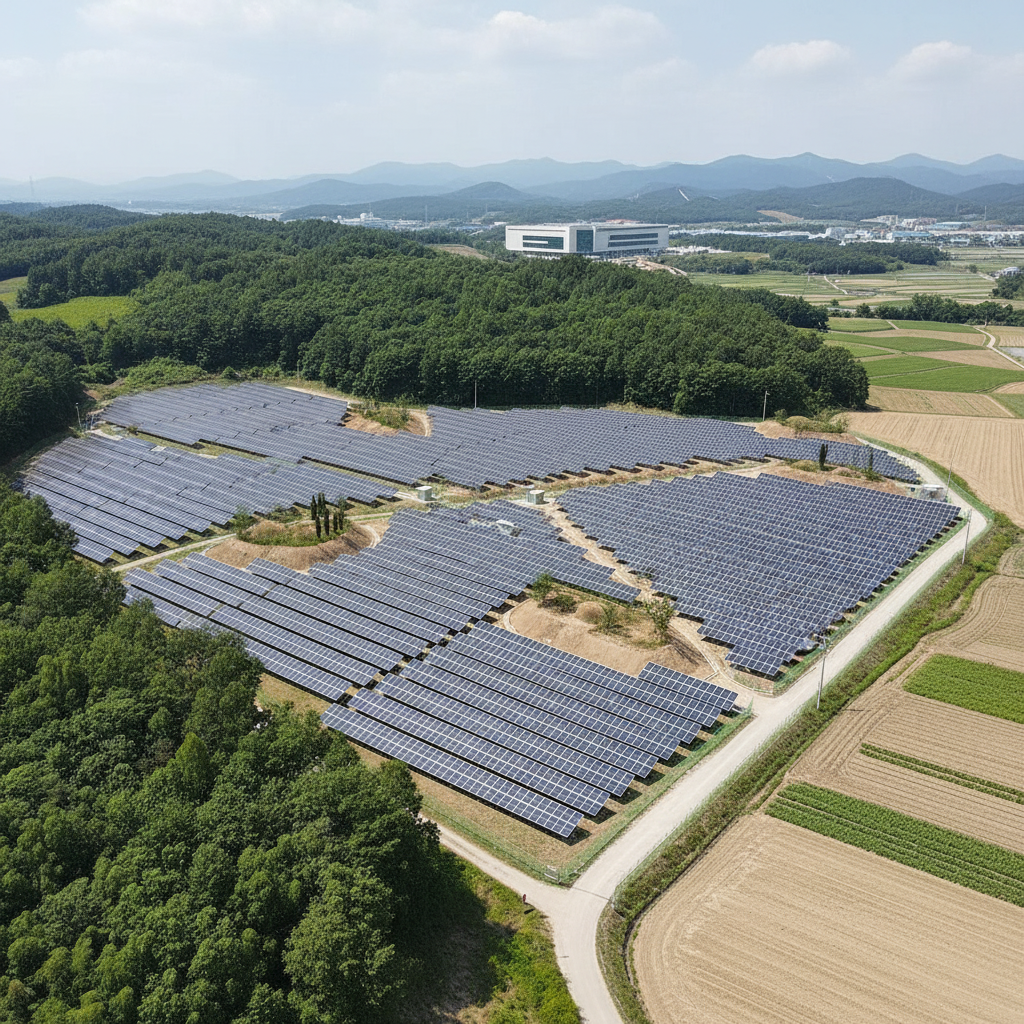

1. Utility-Scale Ground Solar Power Plants
Ideal for large photovoltaic power stations installed on open land. The galvanized steel floor mounting bracket provides strong structural support, long-term stability, and reliable performance under continuous outdoor exposure.
2. Industrial & Commercial Ground PV Projects
Widely used in factory areas, warehouses, logistics parks, and industrial zones with available land. The system supports flexible layouts and fast installation, helping reduce energy costs and improve energy efficiency.
3. Agricultural & Agro-PV Installations
Suitable for agricultural fields and agro-photovoltaic projects, allowing solar panels to be installed on ground structures without interfering with farming activities. The system adapts well to different soil and ground conditions.

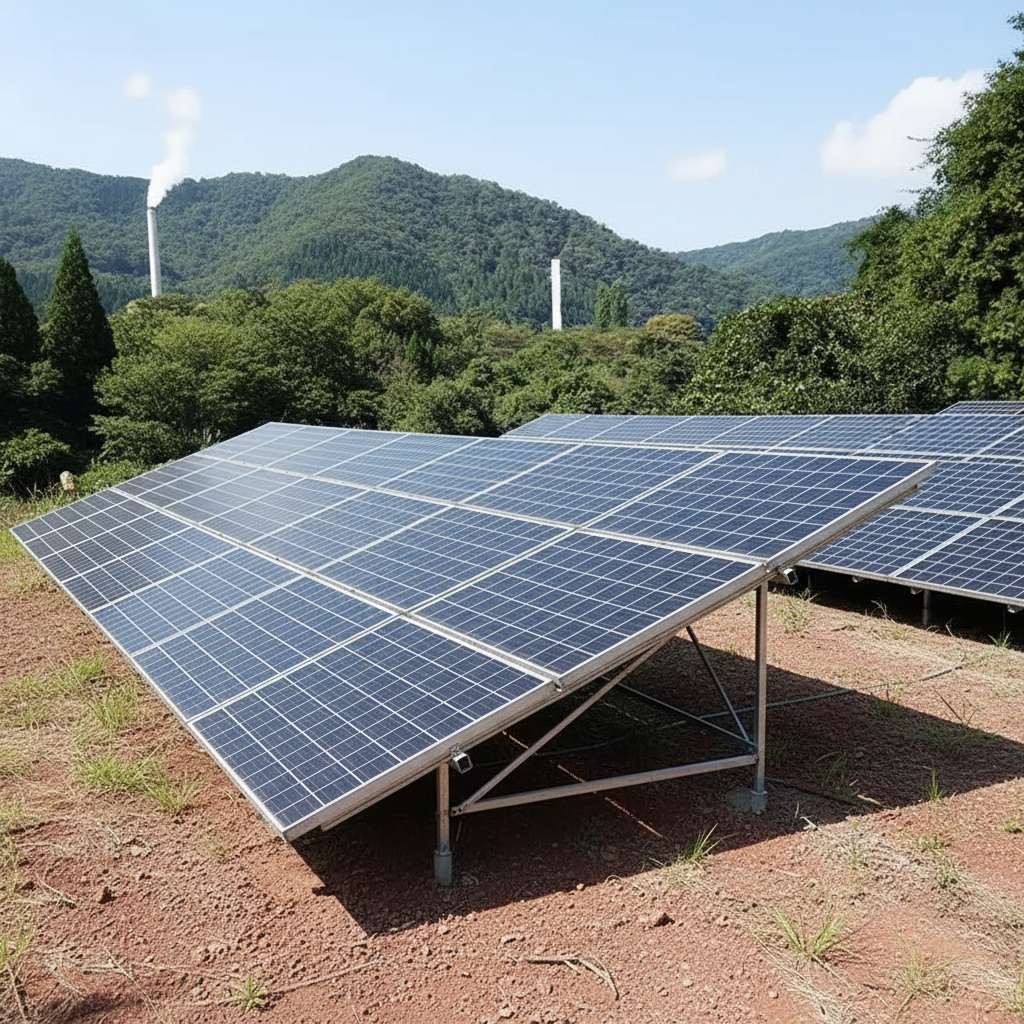

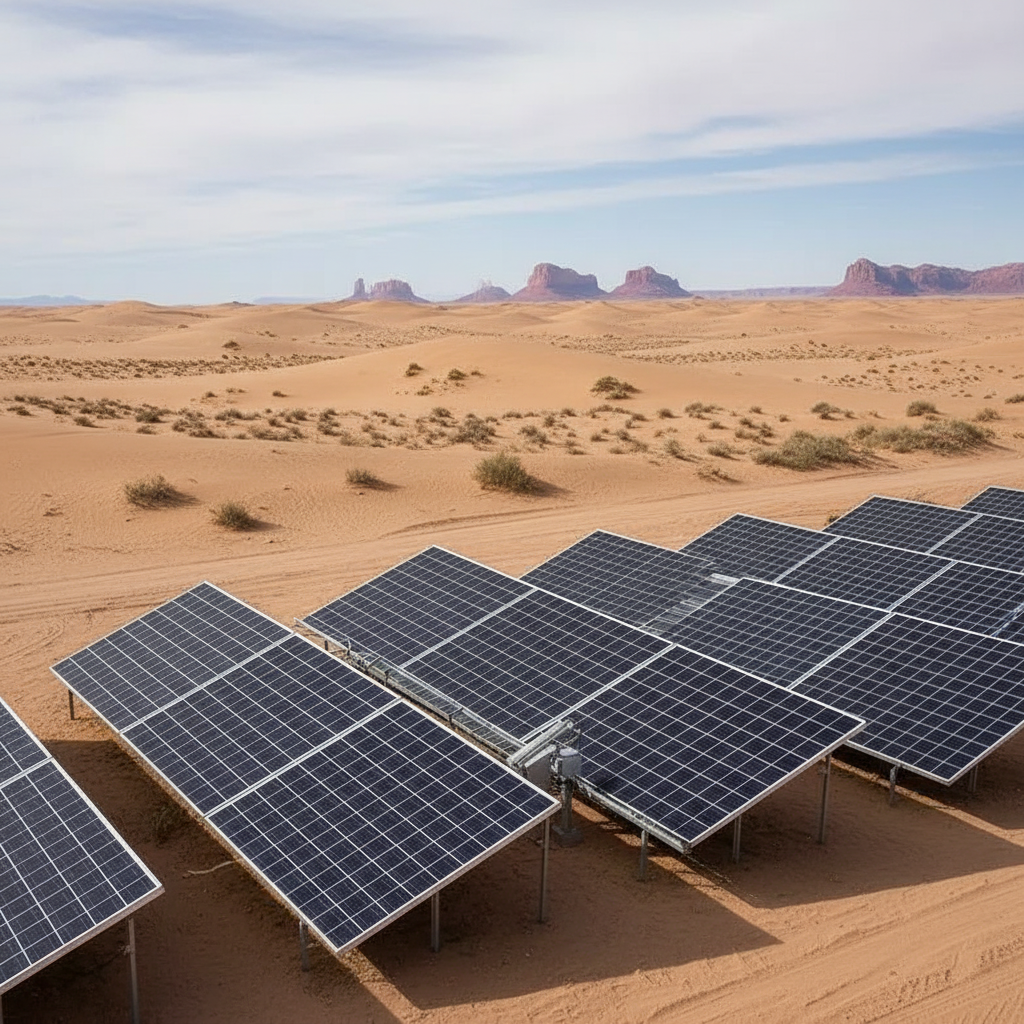

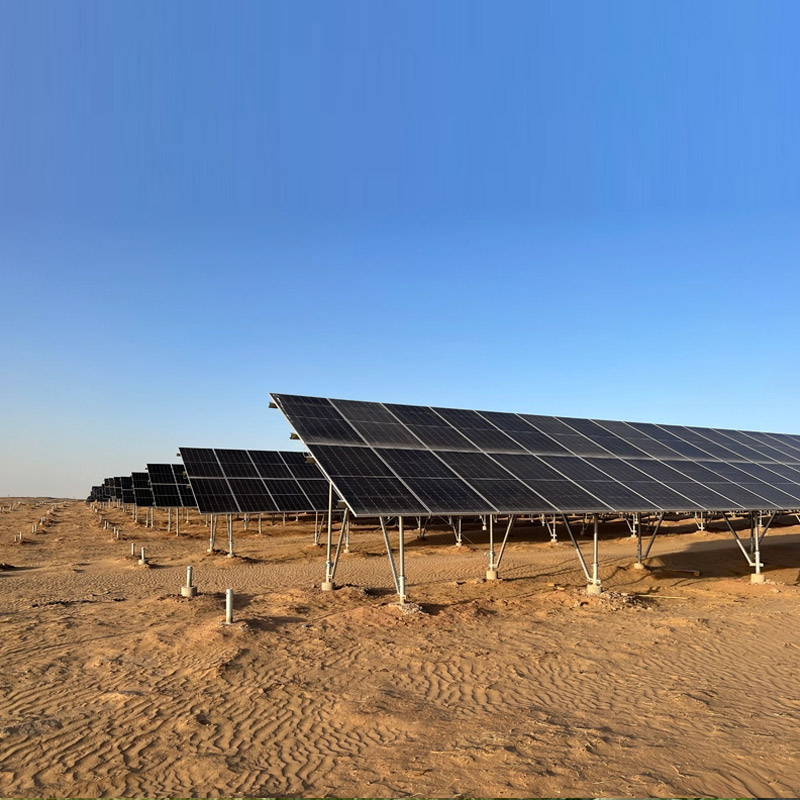

4. Remote, Wasteland & Harsh Environment Sites
Applied in deserts, hills, and unused land with strong sunlight resources. The galvanized steel structure ensures corrosion resistance and stable operation in wind, dust, and long-term outdoor environments.
>> FAQ
Q1. Does the bracket require additional anti-corrosion treatment?
A:No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.
Q2. Can you provide a load-bearing calculation report?
A:We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.
Q3. Do you accept sample orders?
A:Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.
Q4. Payment method and warranty period?
A:Accept TT/LC, with a 15 year warranty (free replacement for non-human damage)
