Cement Roof Support System

>> Product Advantage

1. Non-Penetrating & Roof Protection Design

The cement roof support system for photovoltaic systems adopts a non-penetrating or low-penetration structure to protect the concrete roof from damage. By using ballast blocks or optimized anchors, it avoids water leakage risks.

2. High Wind Resistance & Load Distribution

Engineered with scientific load calculations, the system evenly distributes the weight of solar panels across the roof surface. This ensures excellent wind uplift resistance and structural safety.

3. Flexible Tilt Angle & Energy Optimization

The support system allows adjustable tilt angles to maximize solar energy output according to local latitude and sunlight conditions. This feature improves overall power generation efficiency.

4. Corrosion Resistance & Long Service Life

Made from aluminum alloy or hot-dip galvanized steel, the system offers strong corrosion resistance in outdoor environments. It ensures stable performance with minimal maintenance.

5. Fast Installation & Cost Efficiency

Pre-assembled components and modular design enable quick installation, reducing labor time and overall project cost. It is especially suitable for large-scale rooftop projects such as easy installation concrete roof solar mounting system, cost-effective PV support solution, and commercial rooftop solar mounting structure.

>> Technical Parameters

>> Product Uses

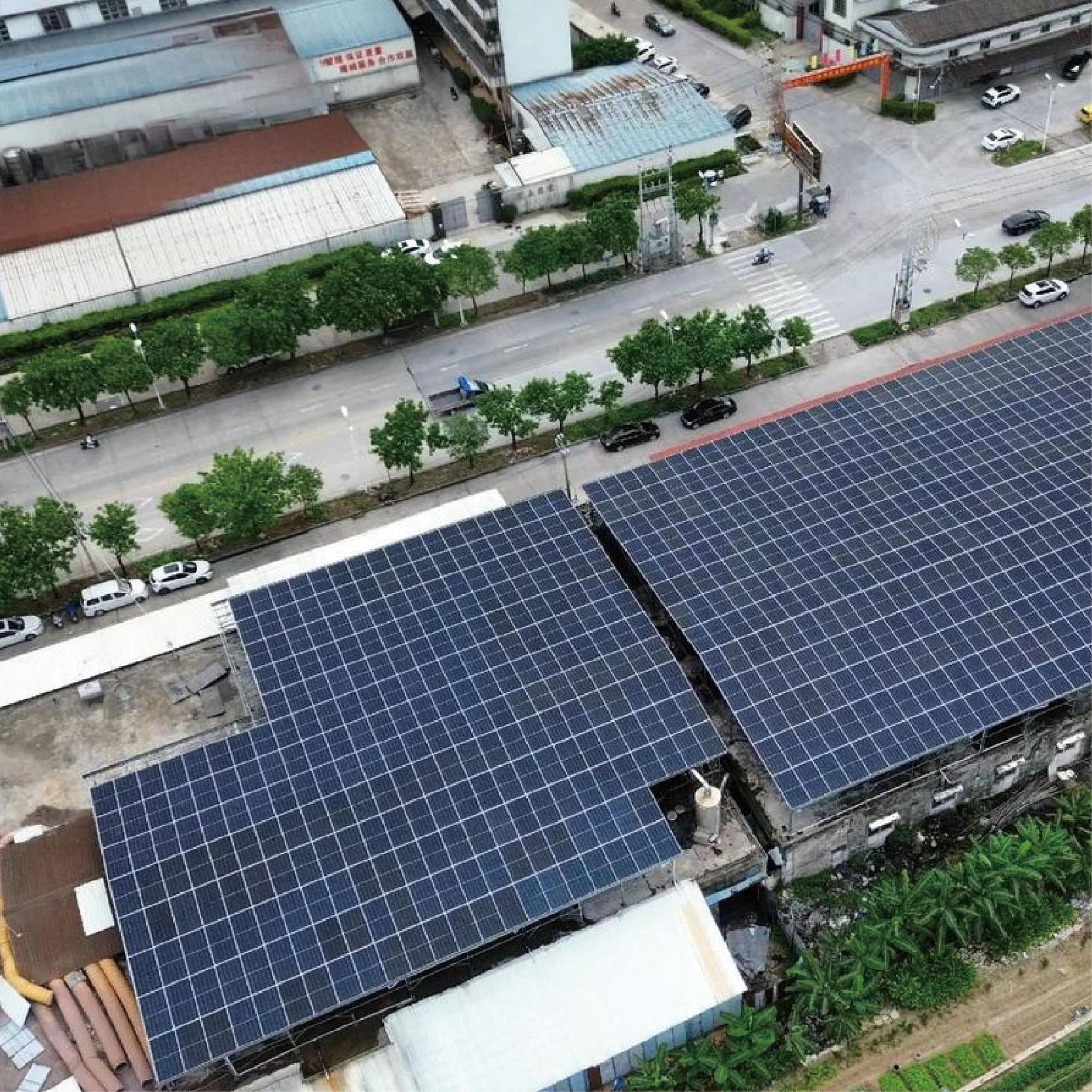

1. Commercial Building Rooftop Solar Projects

Used on shopping malls, office buildings, and commercial complexes with cement roofs. The system provides safe and stable support for solar panels while protecting the roof structure.

2. Industrial Factory & Plant Rooftop PV Systems

Applied to large concrete roofs in factories and industrial plants, supporting large-scale photovoltaic installations with high load capacity and strong wind resistance.

3. Residential Apartment & Community Rooftop Solar

Suitable for apartment buildings and residential communities with flat cement roofs, enabling efficient solar panel installation without damaging the roof surface.

4. Public & Institutional Building Solar Applications

Commonly used on schools, hospitals, and government buildings, helping reduce energy costs and promote sustainable energy use on cement roof structures.

>> Product Operate Guide

• Roof Inspection & System Layout

  Inspect the cement roof condition, check load-bearing capacity, and mark the photovoltaic layout according to design drawings and sunlight orientation.

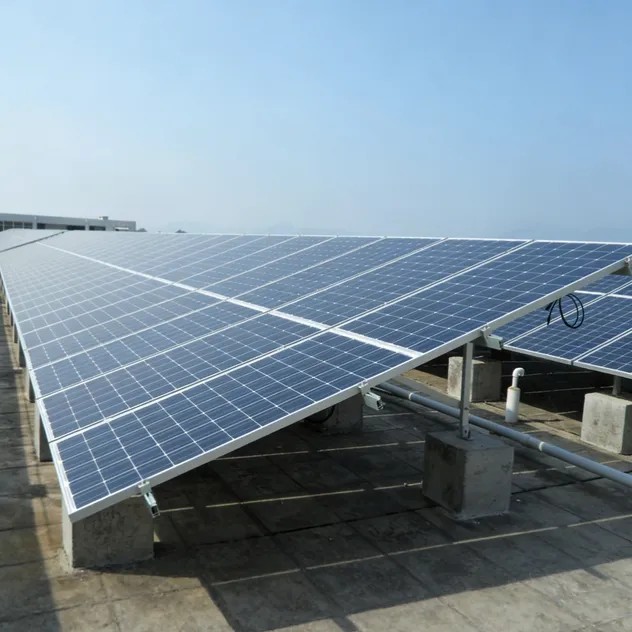

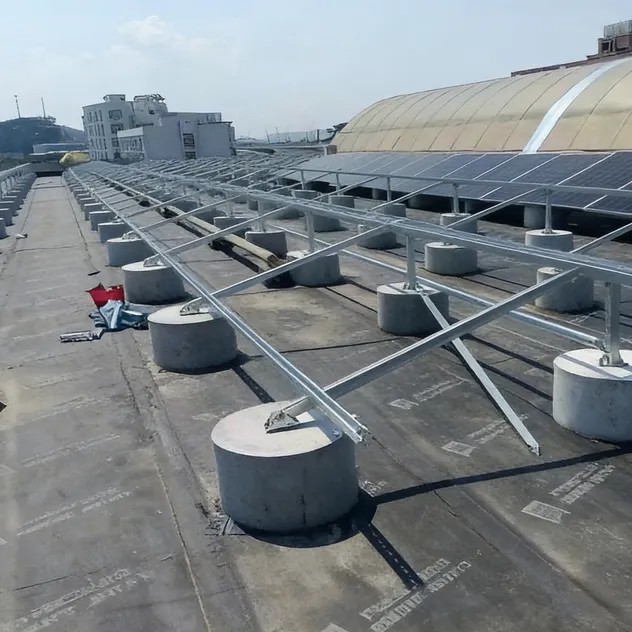

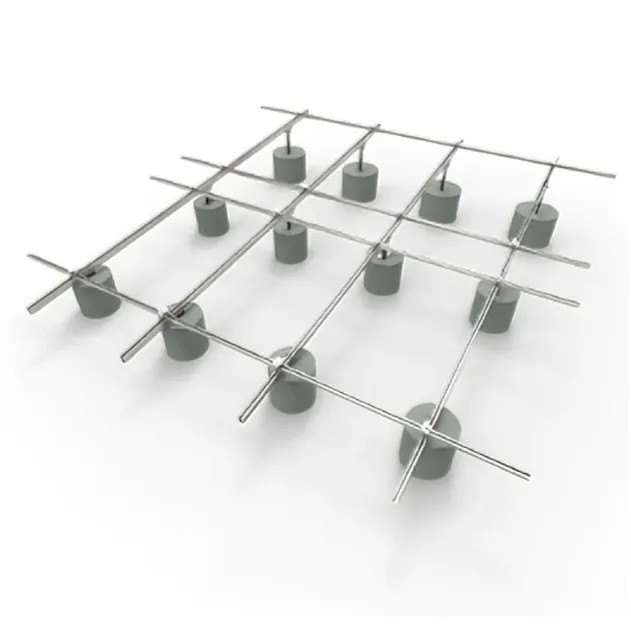

• Install Anchors or Ballast Bases

  Fix anchor bolts into the concrete roof or place ballast blocks based on the selected mounting method, ensuring stable and even load distribution.

• Mount Support Brackets

  Install aluminum or galvanized steel brackets onto the anchors or ballast bases, adjusting tilt angles as required by the photovoltaic system design.

• Install Mounting Rails

  Secure mounting rails onto the brackets, align them accurately, and tighten all fasteners to ensure structural stability.

• Fix Solar Panels

  Place solar panels on the rails and secure them using mid clamps and end clamps, maintaining proper spacing and alignment.

• Final Inspection & Testing

  Check all connections, waterproof sealing points, and overall system stability before completing the installation.

>> FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%.

Q2. Does the bracket require additional anti-corrosion treatment?

A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3. Can you provide a load-bearing calculation report?

A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5. Payment method and warranty period?

A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage)
