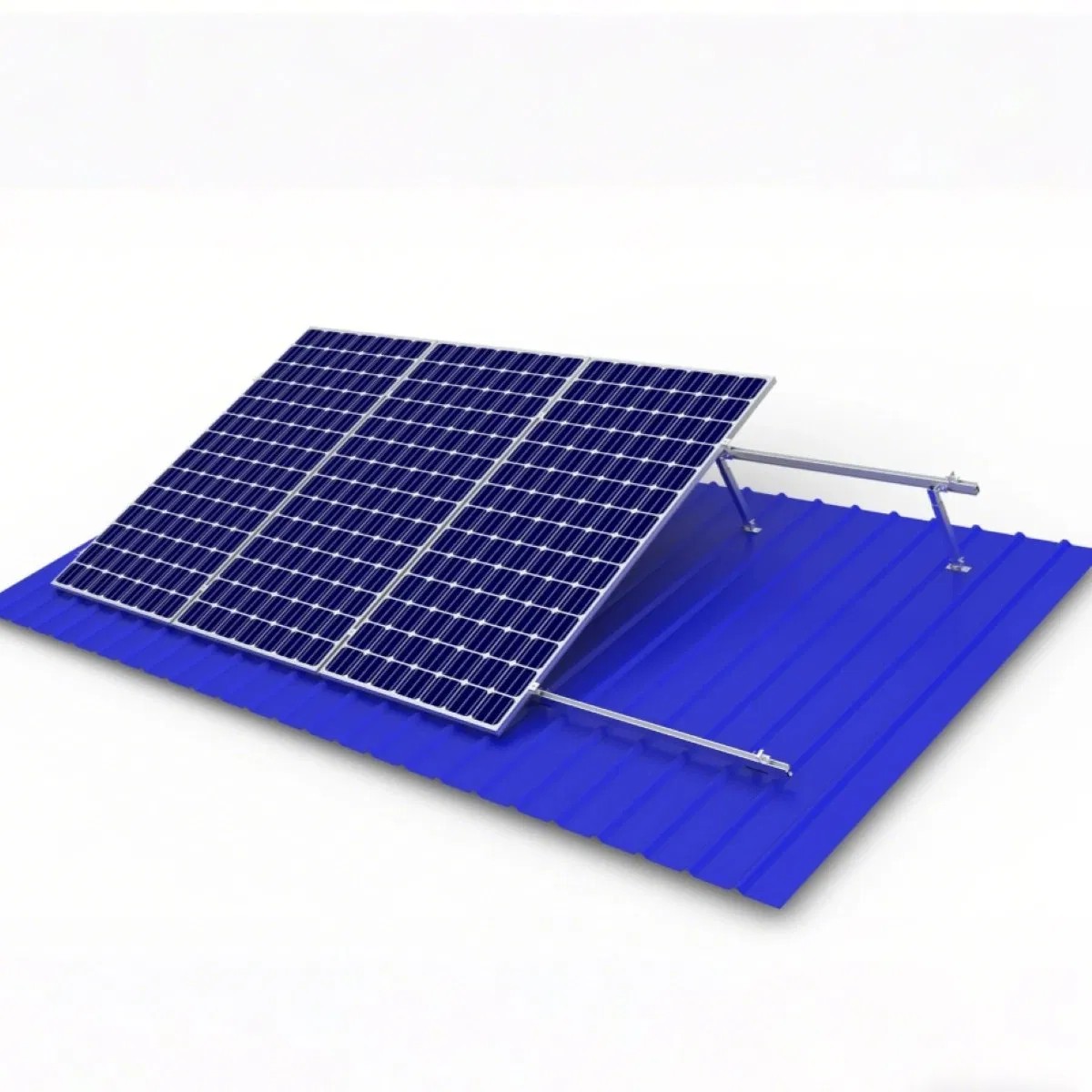

Color Steel Roof Solar Mounting System

>> Product Advantage

1. High Load-Bearing Capacity & Structural Stability

The color steel roof support system is engineered with high-strength steel components to provide excellent load-bearing performance under wind, rain, and snow conditions. Optimized purlin spacing and reinforced connection nodes ensure long-term structural stability. This system is widely used in color steel roof support system for steel structure buildings, industrial roofing support solution, and heavy-duty roof framing system*projects.

2. Corrosion Resistance & Long Service Life

All steel members are treated with hot-dip galvanizing or anti-corrosion coatings to resist rust and harsh outdoor environments. This significantly extends the service life and reduces maintenance costs. It is especially suitable for galvanized color steel roof support system, anti-corrosion roofing support structure, and long lifespan metal roof support system in coastal or humid areas.

3. Flexible Design & Customization Capability

The system supports flexible design according to different spans, roof slopes, and building layouts. Components can be customized in size, thickness, and arrangement to match project requirements. This makes it ideal for customized color steel roof support system, adjustable metal roofing support structure, and steel roof framing system for industrial buildings.

4. Fast Installation & Cost Efficiency

Standardized components and precise fabrication allow for quick on-site assembly, reducing installation time and labor costs. The lightweight yet strong design also lowers transportation expenses. It is commonly selected for easy installation color steel roof support system, cost-effective roofing support solution, and prefabricated steel roof support structure.

>> Technical Parameters

>> Product Uses

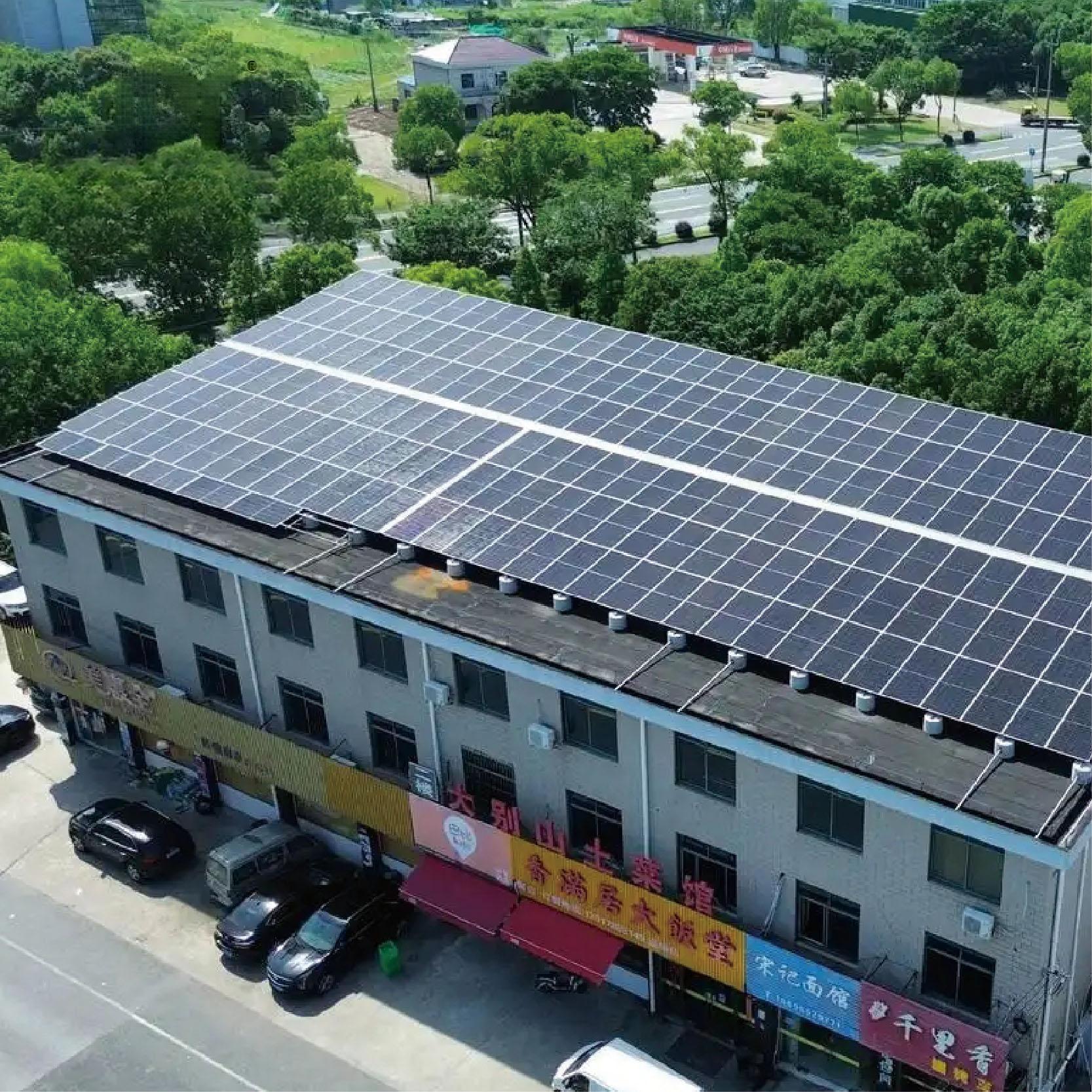

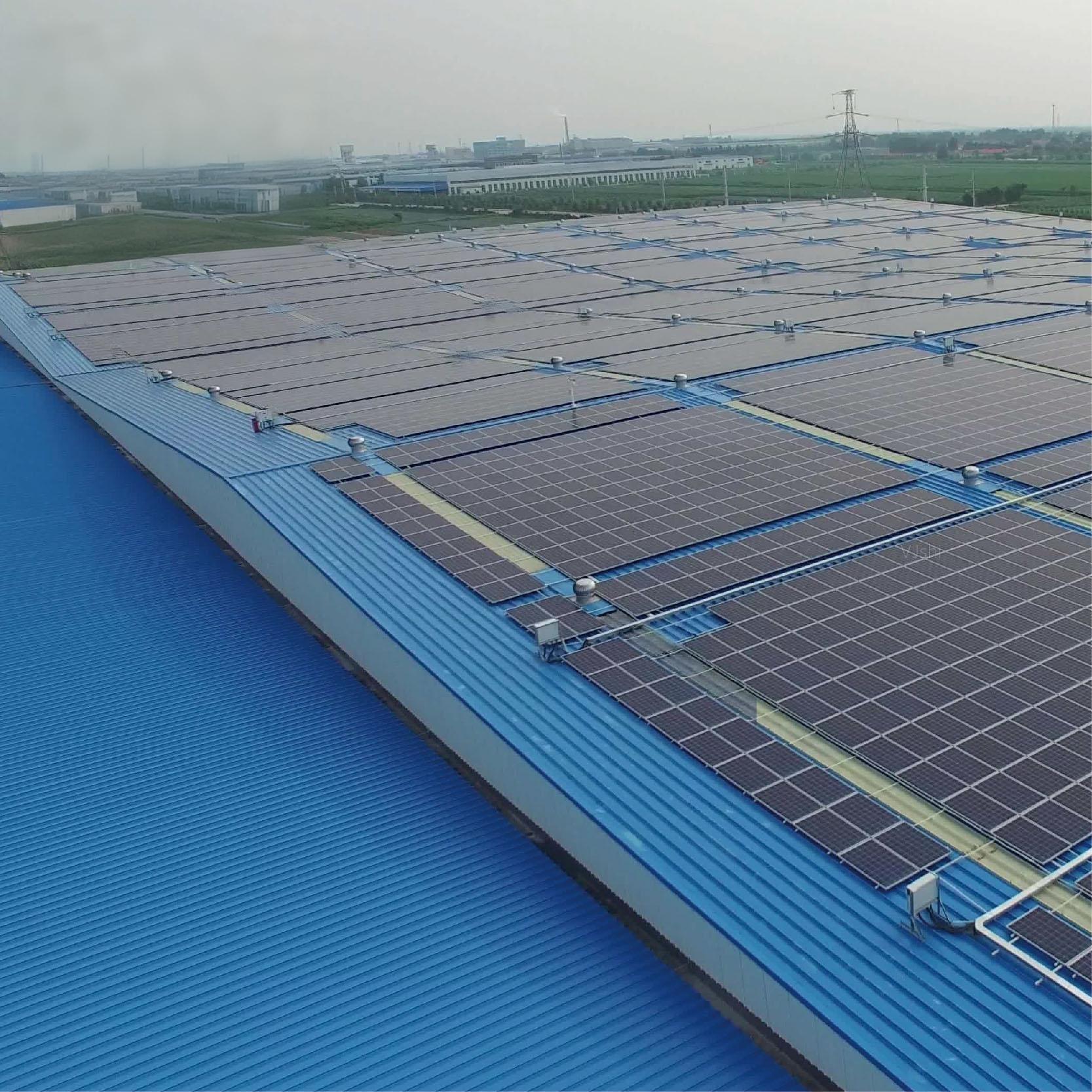

1. Industrial Factory Rooftop Solar Systems

Used on factory rooftops to support solar panels on color steel roofs, providing stable installation without affecting daily production. It helps enterprises reduce energy costs and improve energy efficiency.

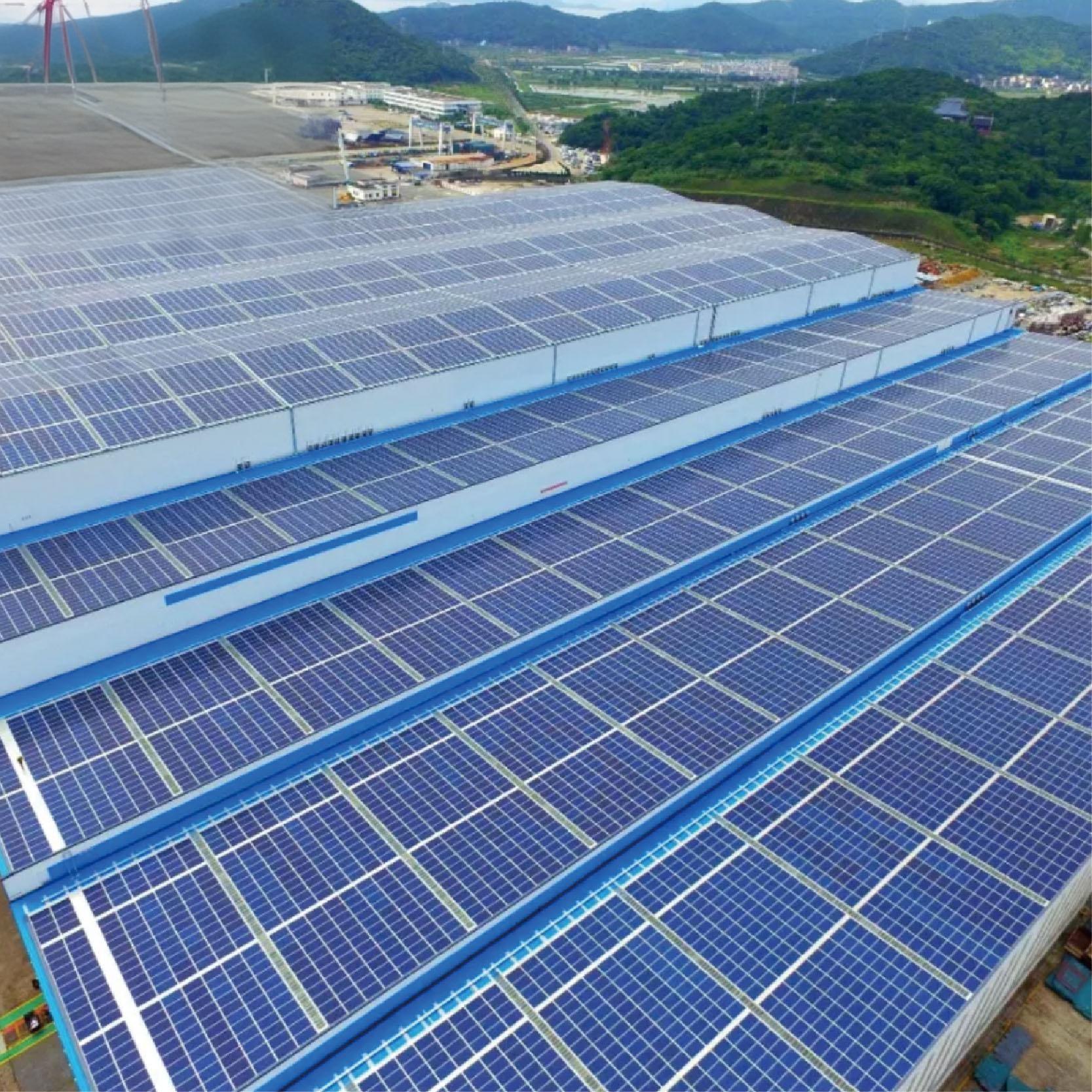

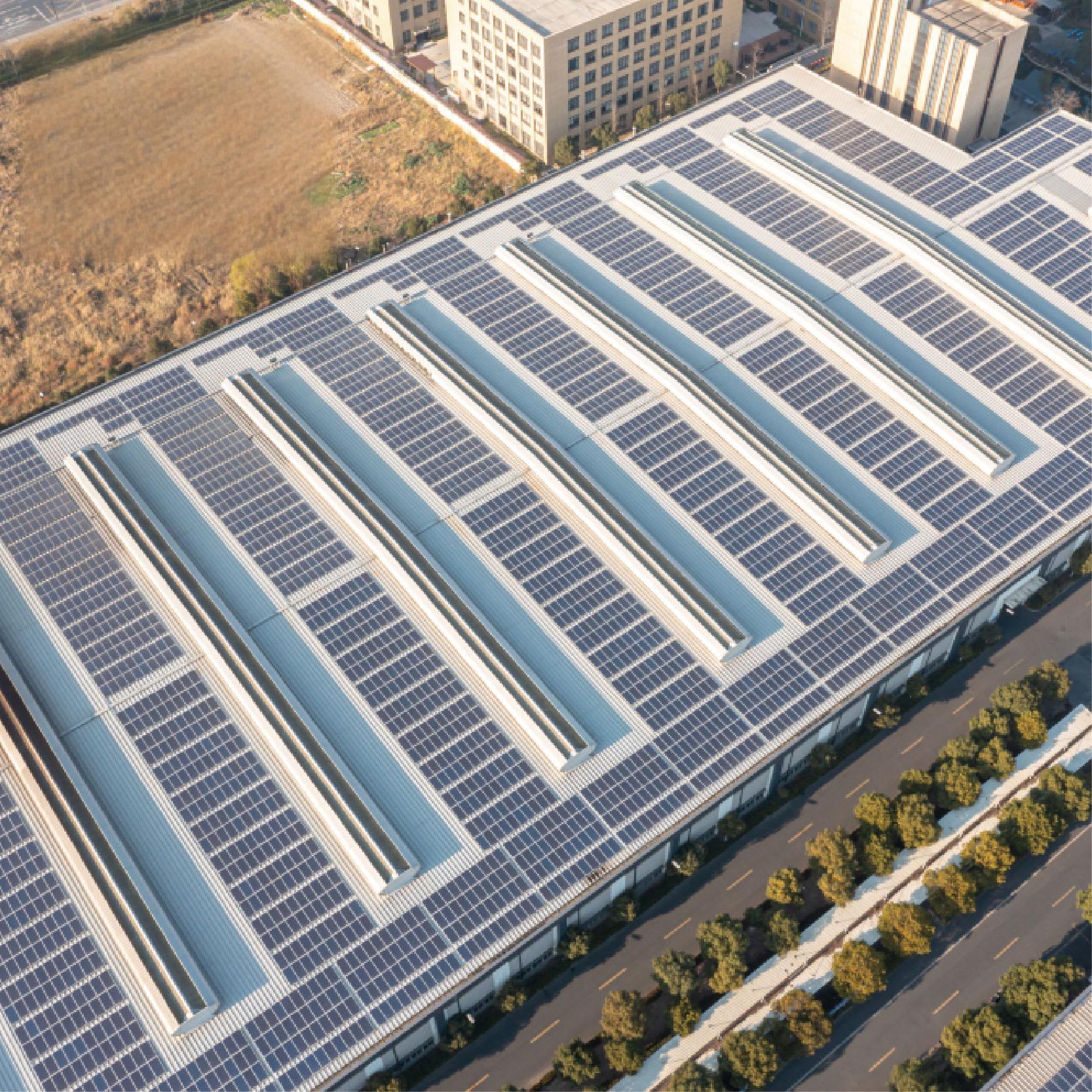

2. Warehouse & Logistics Center PV Roofs

Applied to large-span warehouse roofs, allowing efficient installation of solar panels while maintaining roof integrity. The system supports long-term, low-maintenance operation for rooftop photovoltaic projects.

3. Commercial Building Solar Roof Projects

Suitable for shopping centers, exhibition halls, and office buildings with color steel roofs. The support system ensures safe solar panel mounting and improves building energy sustainability.

4. Agricultural & Auxiliary Building Solar Use

Commonly used on agricultural sheds, equipment houses, and storage buildings, enabling solar power generation while utilizing existing roof space efficiently and economically.

>> Product Operate Guide

1. Roof Inspection & Layout Planning

Inspect the color steel roof condition and structure, confirm load capacity, and mark the solar panel layout according to design drawings.

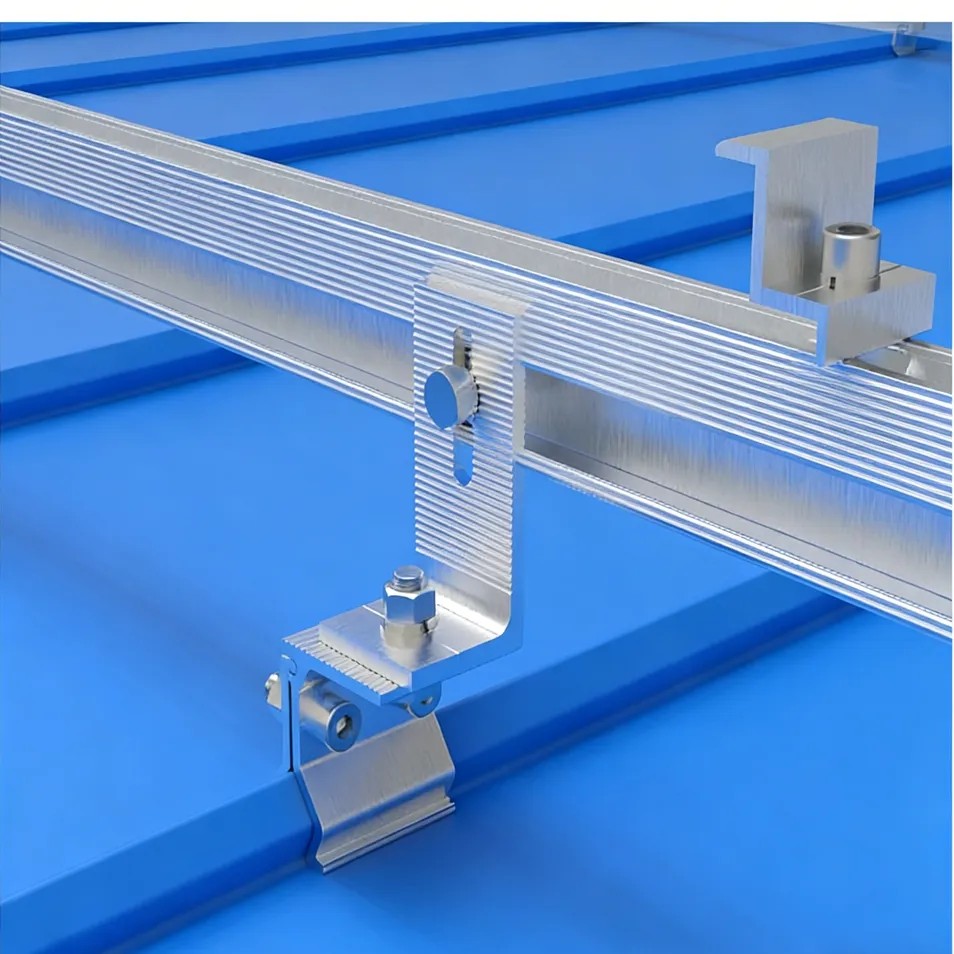

2. Install Roof Clamps or Brackets

Fix dedicated metal roof clamps or brackets onto the color steel roof ribs without penetrating the roof, ensuring strong fixing and waterproof performance.

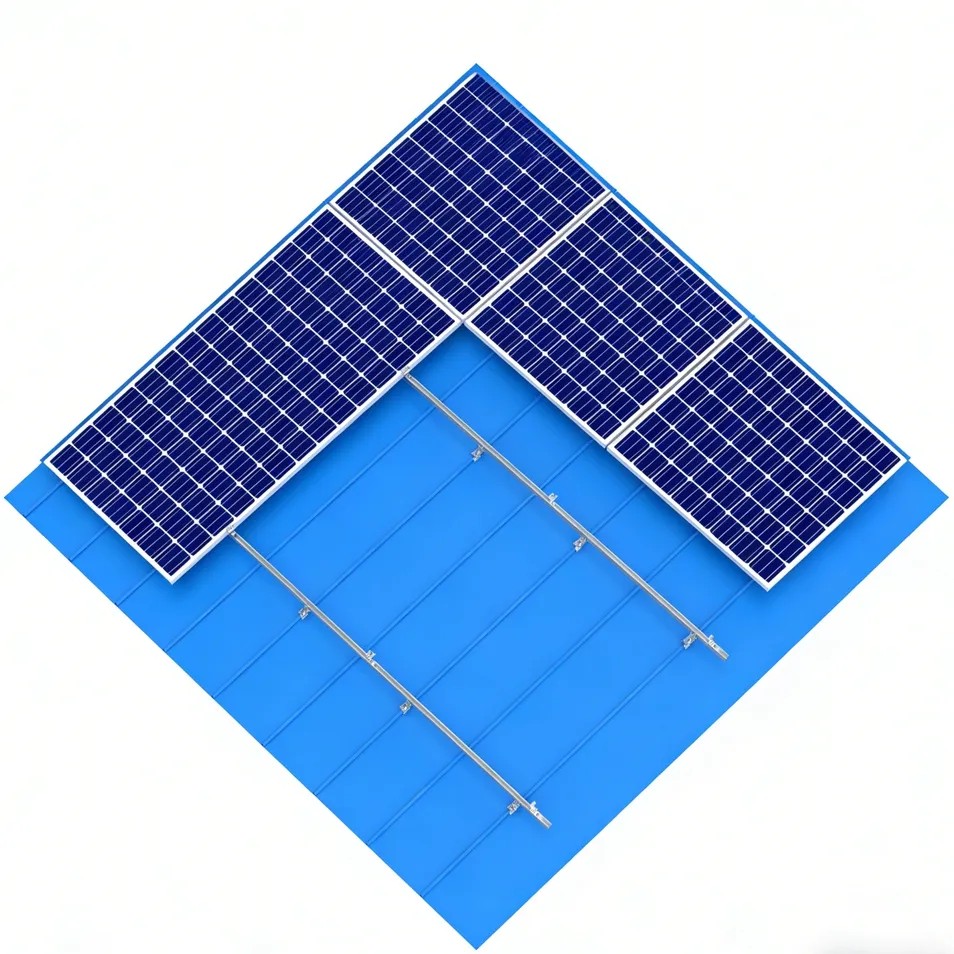

3. Mount Support Rails

Install aluminum mounting rails onto the roof clamps or brackets, align them accurately, and tighten all fasteners securely.

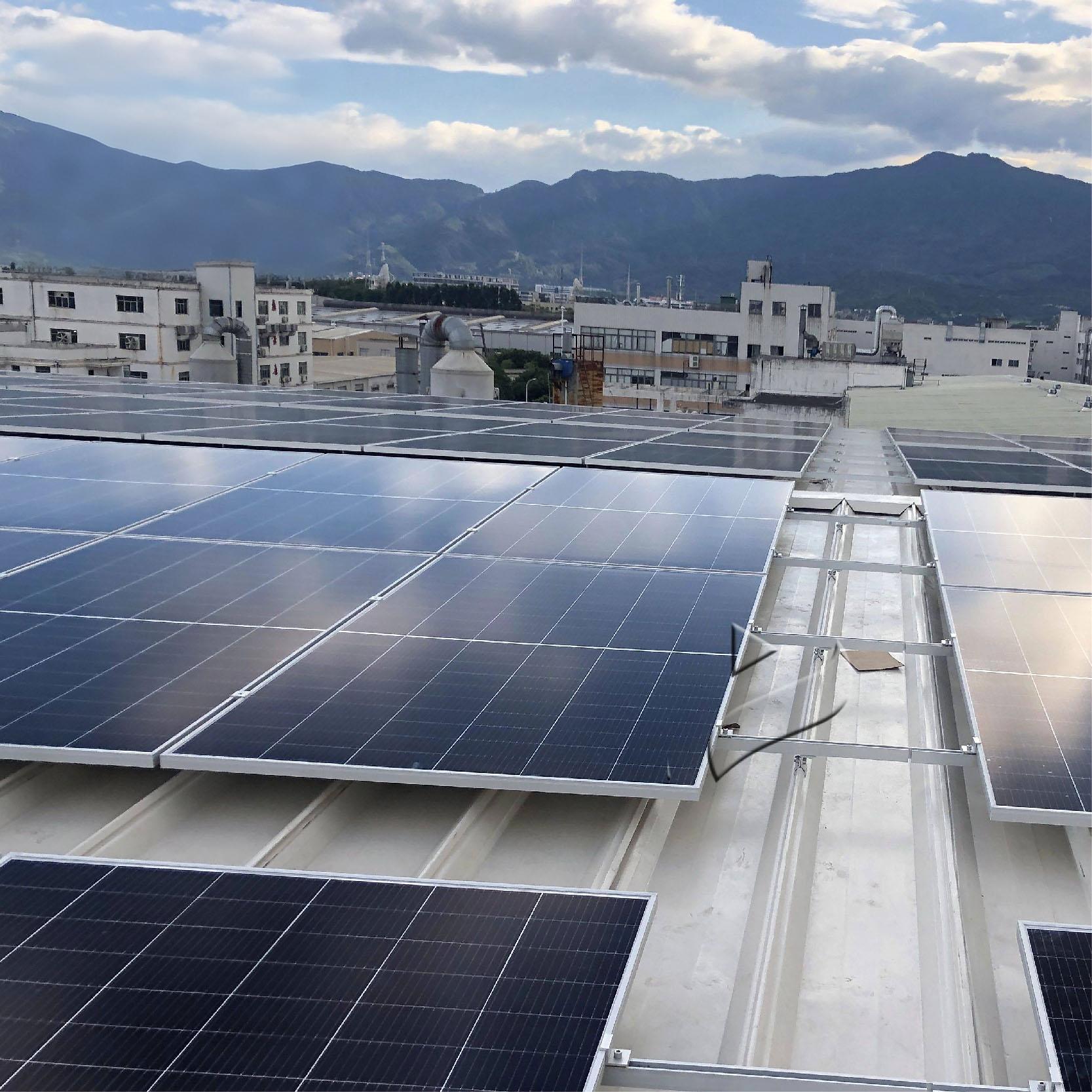

4. Install Solar Panels

Place photovoltaic panels onto the rails and fix them with mid clamps and end clamps, ensuring proper spacing and alignment.

5. Electrical Connection

Connect DC cables, arrange wiring neatly, and fix cables to the structure to avoid damage from wind or movement.

6. Final Inspection

Check all fasteners, roof sealing points, and overall system stability before completing the installation.

>> FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%.

Q2. Does the bracket require additional anti-corrosion treatment?

A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3. Can you provide a load-bearing calculation report?

A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5. Payment method and warranty period?

A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage)
