>> Product Advantage
1. Warm Film Insulation Structure
This greenhouse adopts a warm film covering system that improves heat retention compared with standard single-layer film structures. It helps reduce heat loss while maintaining high light transmission, creating a comfortable indoor environment for leisure and recreational use throughout extended seasons.
2. Durable and Aesthetic Steel Framework
Built with a hot-dip galvanized steel frame, the structure offers strong corrosion resistance and long service life. The clean and modern appearance enhances visual appeal, making it suitable for leisure gardens, eco-parks, and recreational agricultural projects.
3. Comfortable Space for Leisure and Light Planting
The greenhouse provides a bright and protected space suitable for relaxation, light planting, and recreational activities. Natural sunlight combined with basic insulation supports a pleasant environment for visitors without complex structural requirements.
4. Optional Climate Control and Functional Systems
According to project needs, optional systems such as heating, cooling, ventilation, shading, and temperature control can be added. This flexible configuration allows the greenhouse to adapt to different climates and usage scenarios, improving comfort and usability.
5. Flexible Customization and Easy Installation
The modular design allows customization in size, span, and layout to match different leisure projects. Factory-prefabricated components ensure easy installation and efficient construction, making it suitable for both small-scale and commercial leisure developments.
>> Technical Parameters
| Frame Material | Hot Galvanized Steel | Layer | Single/Double |
| Light Transmittance Rate | More Than 90% | Covering Material | Po/PE Film |
| Span width | 6m/8m/9.6m/10m/12m/customized | Wind load | 0.25 - 2KN/m² (According to the specific situation) |
| Section width | 3m/4m/5m/customized | Snow accumulation | 0.25 - 2KN/m² (According to the specific situation) |
| Height of the quarry | 3m/4m/5m/customized | Planting interest - bearing load | 0.25 - 2KN/m² (According to the specific situation) |
| Ridge height | 4m/5m/6m/customized |
>> Product Uses

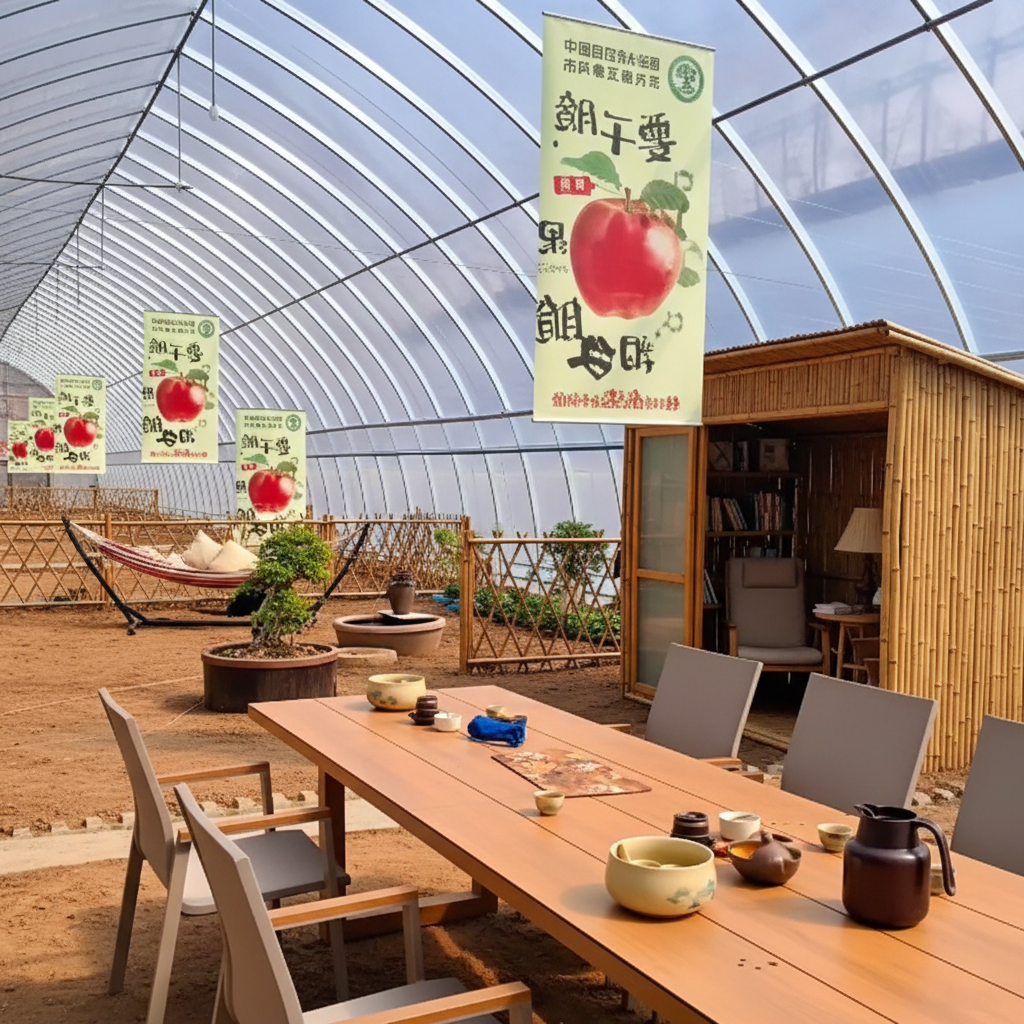

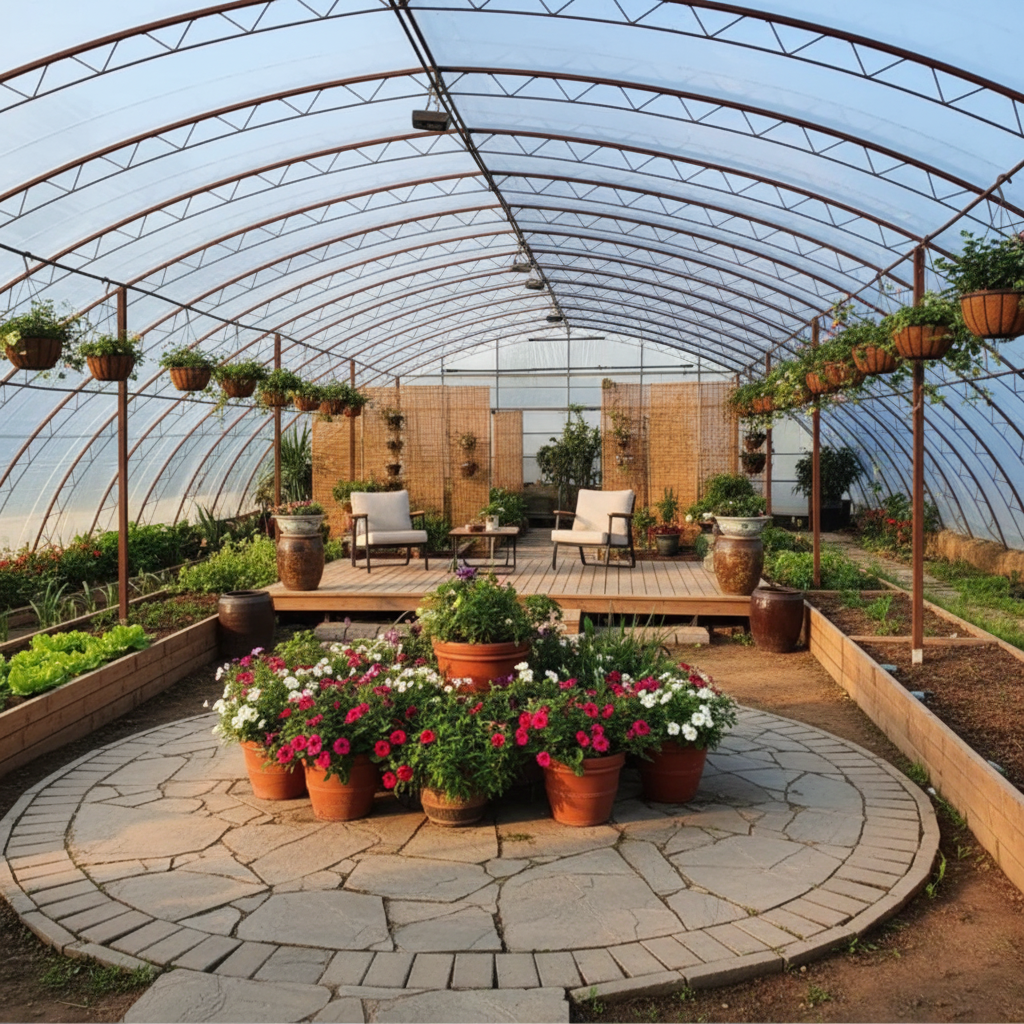

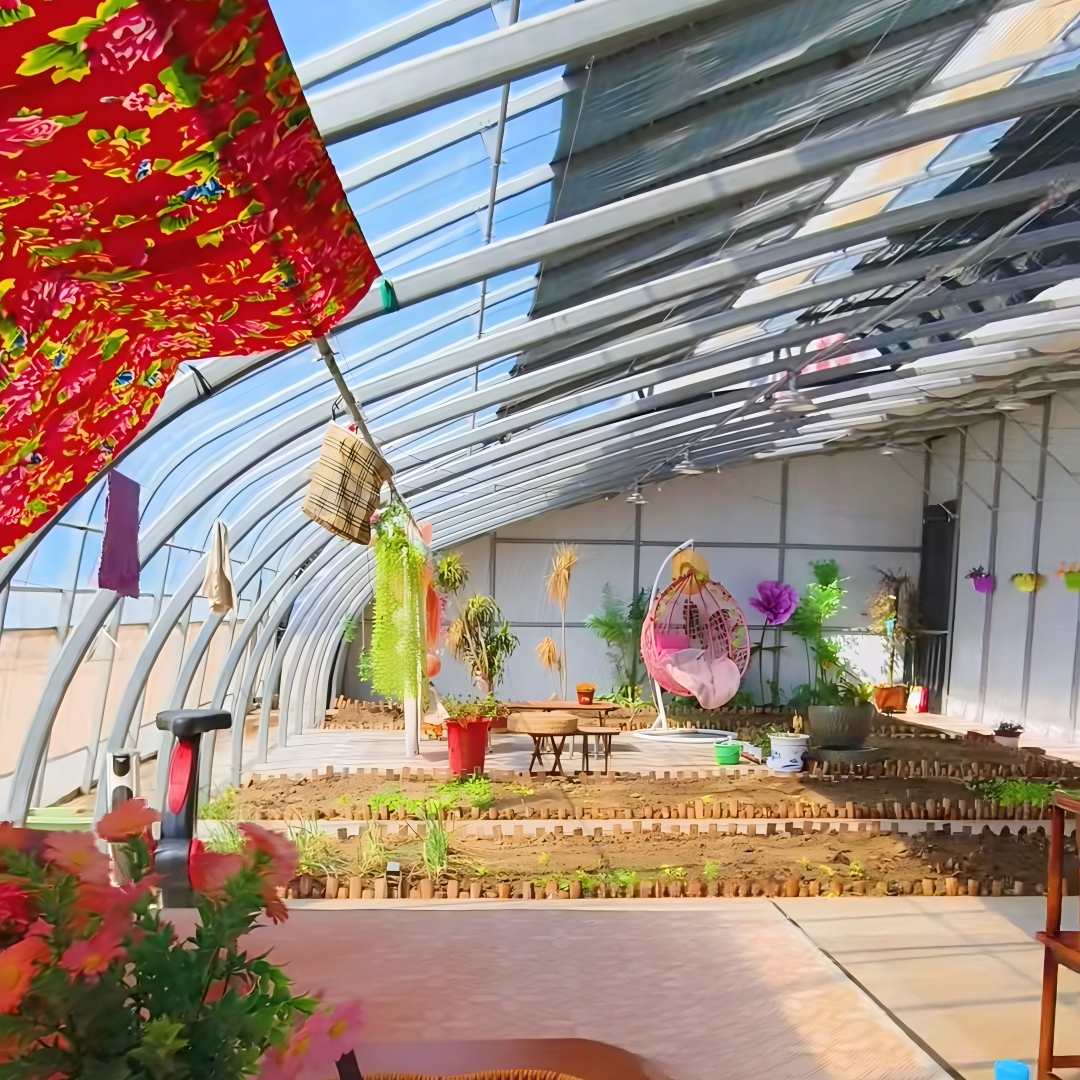

1. Leisure Gardens and Private Yards
This greenhouse is suitable for leisure gardens and private yards, providing a warm and comfortable space for relaxation and light planting. Optional heating and ventilation systems can be added to improve year-round usability.

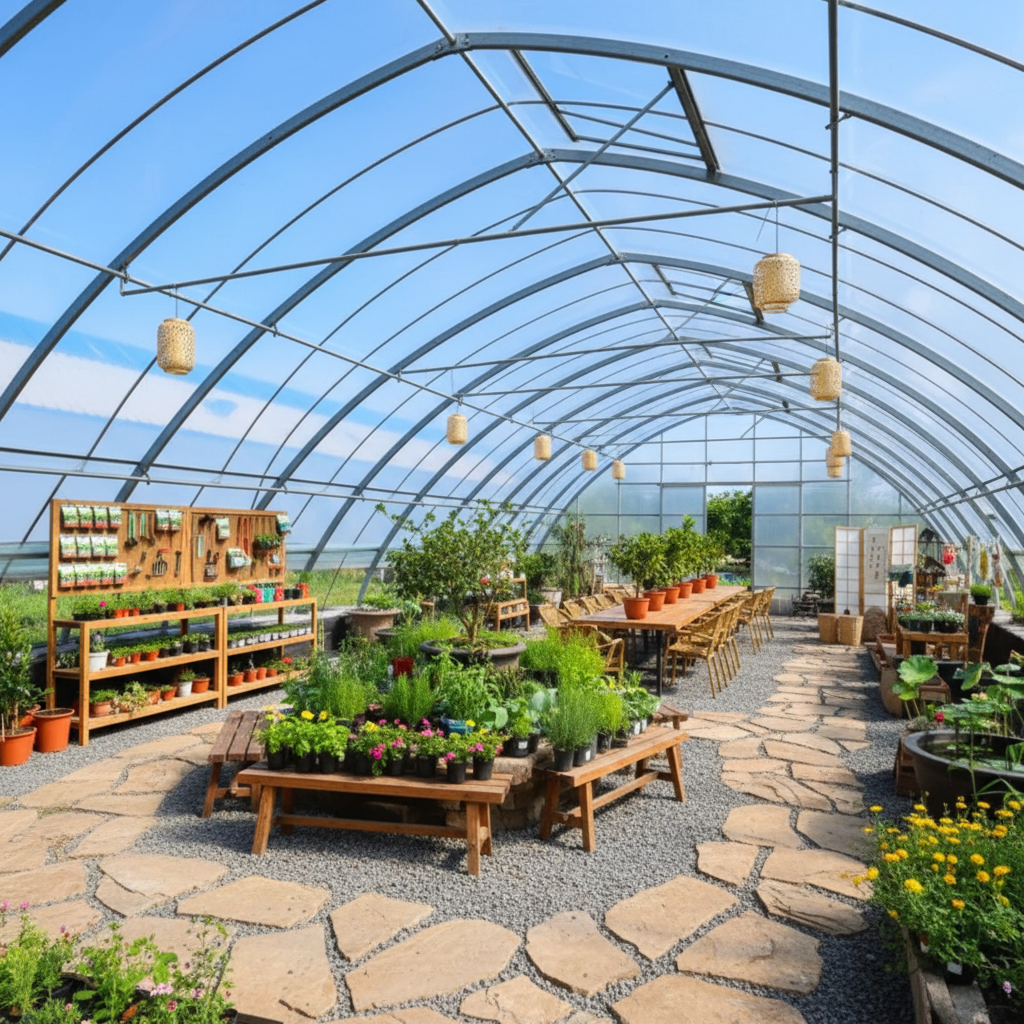

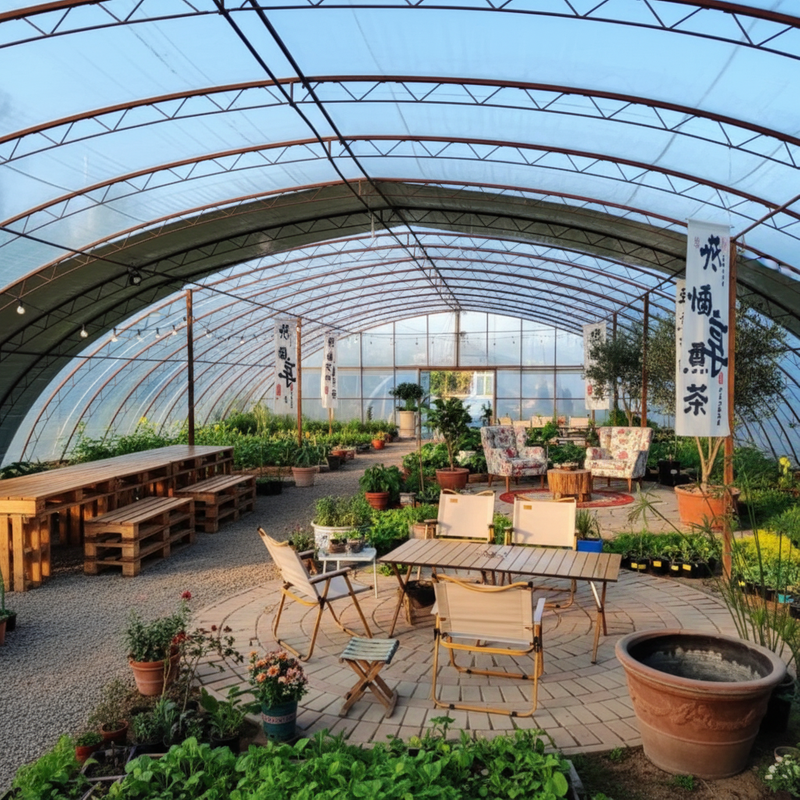

2. Eco-Parks and Sightseeing Farms
Widely used in eco-parks and sightseeing farms, the greenhouse combines planting with visitor experience. The transparent warm film creates an open visual effect while protecting visitors from wind and cold weather.

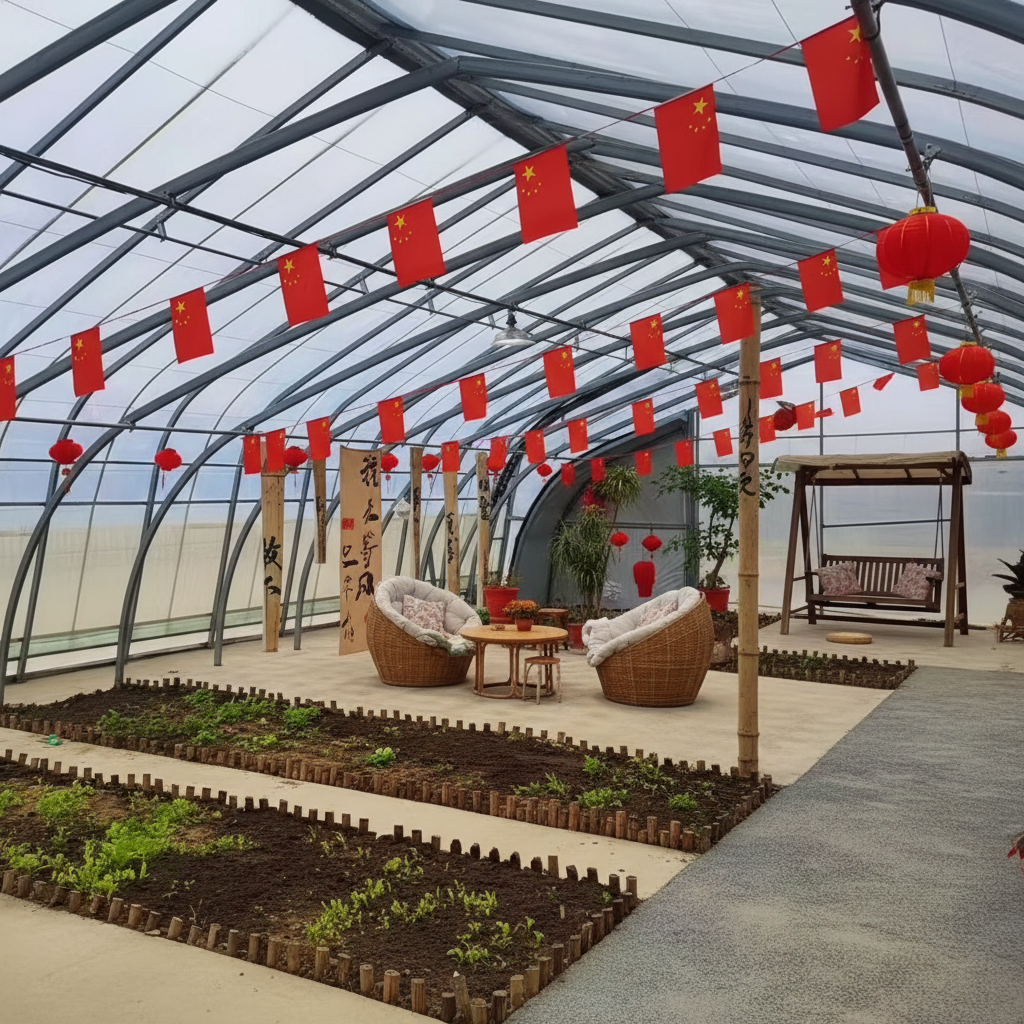

3. Recreational Agriculture and Experience Projects
This greenhouse is applied in recreational agriculture projects where planting, leisure, and interaction are combined. Customized climate control and shading systems help create a comfortable environment for visitors and activities.

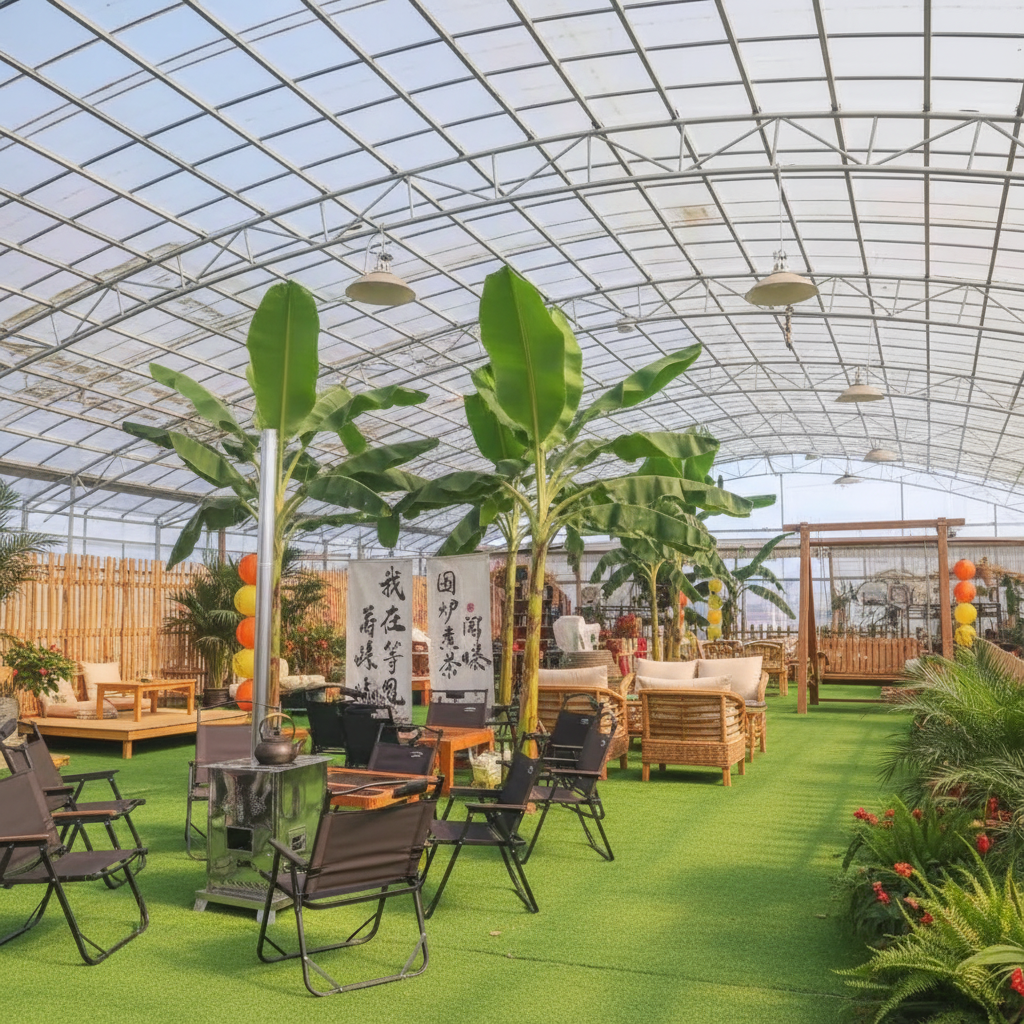

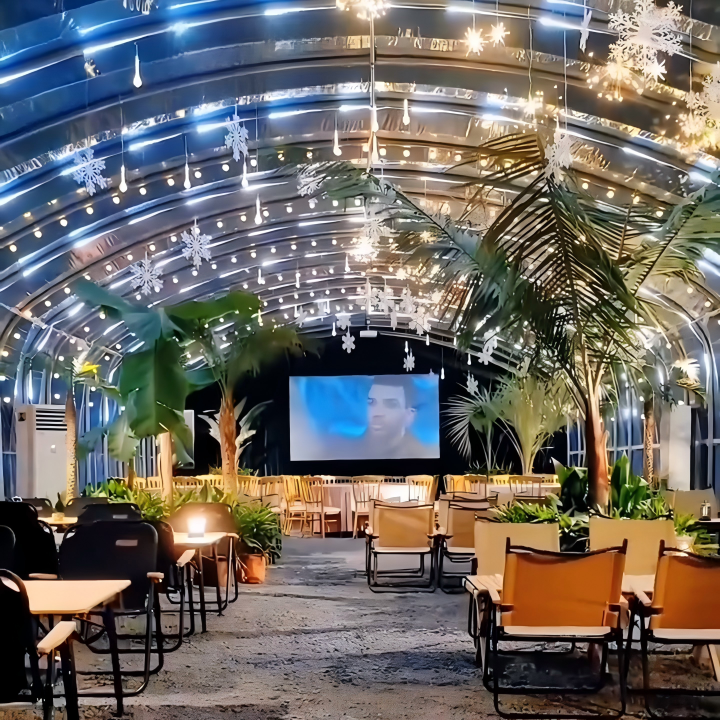

4. Cafés, Exhibition, and Event Spaces
The warm film greenhouse can be used as a unique space for cafés, exhibitions, or small events. Its flexible structure and optional climate systems allow it to function as a seasonal or semi-permanent recreational venue.
>> Product Operate Guide
Greenhouse Construction Steps：
1-Site Preparation & Line Marking
Mark out lines horizontally and vertically for the ground-inserted greenhouse. Drill holes at 1-meter intervals, with the depth matching the required embedding length of the main frame.
2-Material Delivery & Assembly
Transport all materials to the site and pre-install the elliptical clamps in accordance with the greenhouse design.
3-Frame Erection & Levelling
After assembling all elliptical clamps, erect the main frame, connect the tie rods, and use a spirit level to adjust and ensure horizontal alignment.
4-Frame Grouting & Support Installation
Backfill the base of the frame with concrete, then erect the support columns, along with the column girders and diagonal braces.
5-Clamping Channel Installation for Air Vents
Once the concrete has set, install the clamping channels for the side and roof air vents.
6-Greenhouse Film Installation
Cover the frame with the greenhouse film and secure it firmly in the clamping channels using spring clips.
7-Insulation Blanket & Winder Installation
Fit the insulation blankets, weld the blanket-rolling rods, install the blanket winders, and fasten the blankets in place.
8-Film Roller Installation & Commissioning
Mount the film rollers, test the operation of the insulation blankets and the film air vents. The entire greenhouse construction is then completed.
>> FAQ
Q1: What is the minimum order quantity (MOQ)?
A: The MOQ is one set. Each double layer warm greenhouse is usually produced based on project size, making it suitable for both small trial orders and large agricultural projects.
Q2: Is installation support provided?
A: Yes. We provide detailed installation drawings, layout plans, and step-by-step assembly instructions.
Q3: How is the greenhouse packed and shipped?
A: Steel structures are packed in bundles, and double-layer films are packed in protective rolls or cartons. The greenhouse is suitable for container shipping, including 20GP, 40GP, and 40HQ containers.
Q4.Payment method and warranty period?
A:Accept TT/LC, with a 15 year warranty (free replacement for non-human damage).
