Tile Roof Support System

>> Product Advantage

1. Tile-Friendly Fixing & Waterproof Protection

The tile roof support system for photovoltaic systems uses specially designed roof hooks to avoid cutting or breaking tiles during installation. This ensures long-term waterproof performance and roof integrity.

2. Strong Wind Resistance & Structural Safety

Engineered to withstand high wind uplift, the system transfers loads directly to the roof structure instead of the tiles. This guarantees reliable stability in harsh weather conditions.

3. Corrosion Resistance & Long Service Life

Made from High-quality steel, the system offers excellent corrosion resistance in outdoor environments. It ensures stable performance with minimal maintenance.

4. Fast Installation & Cost Efficiency

Pre-assembled components and standardized design reduce installation time and labor costs. The lightweight structure also lowers transportation expenses.

>> Technical Parameters

>> Product Uses

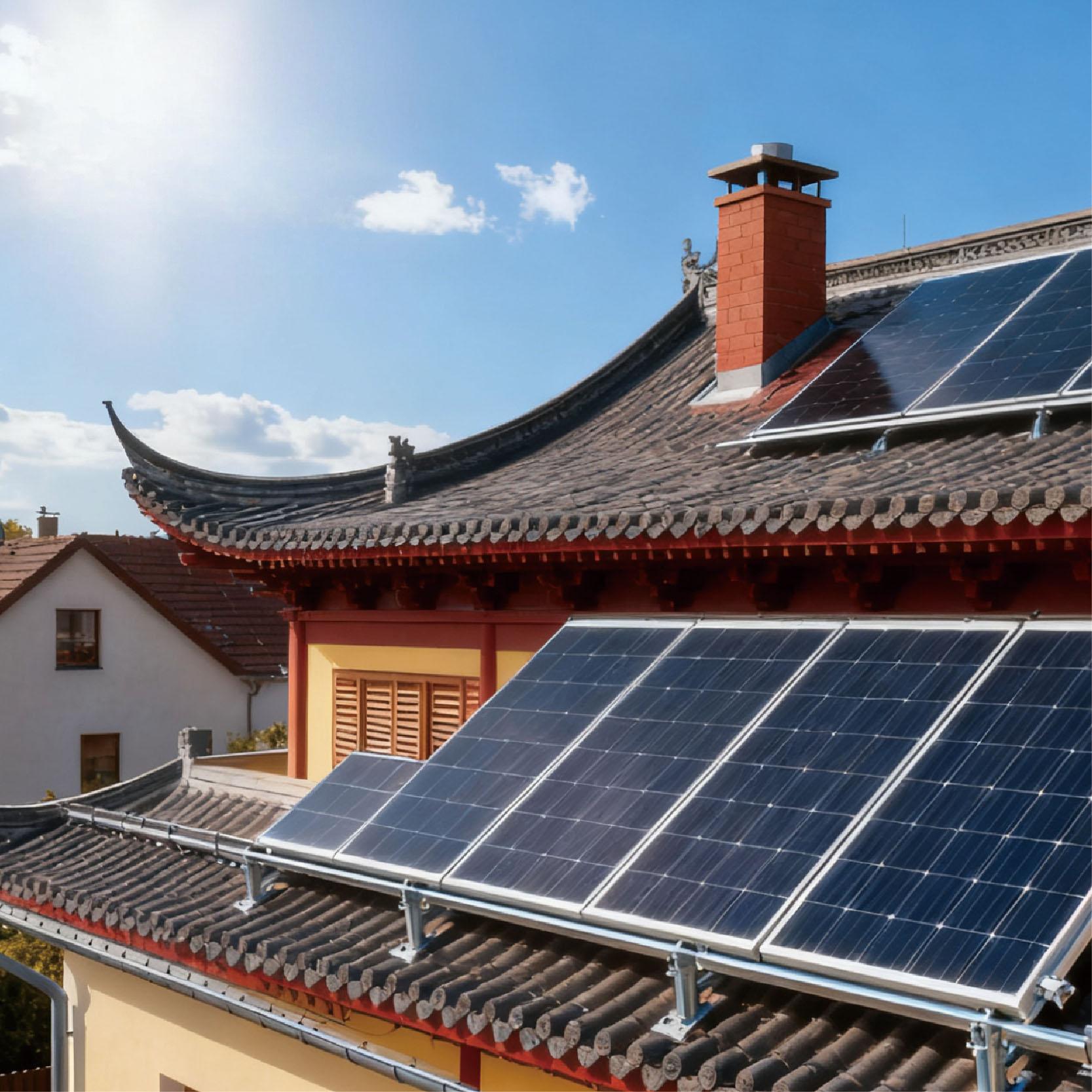

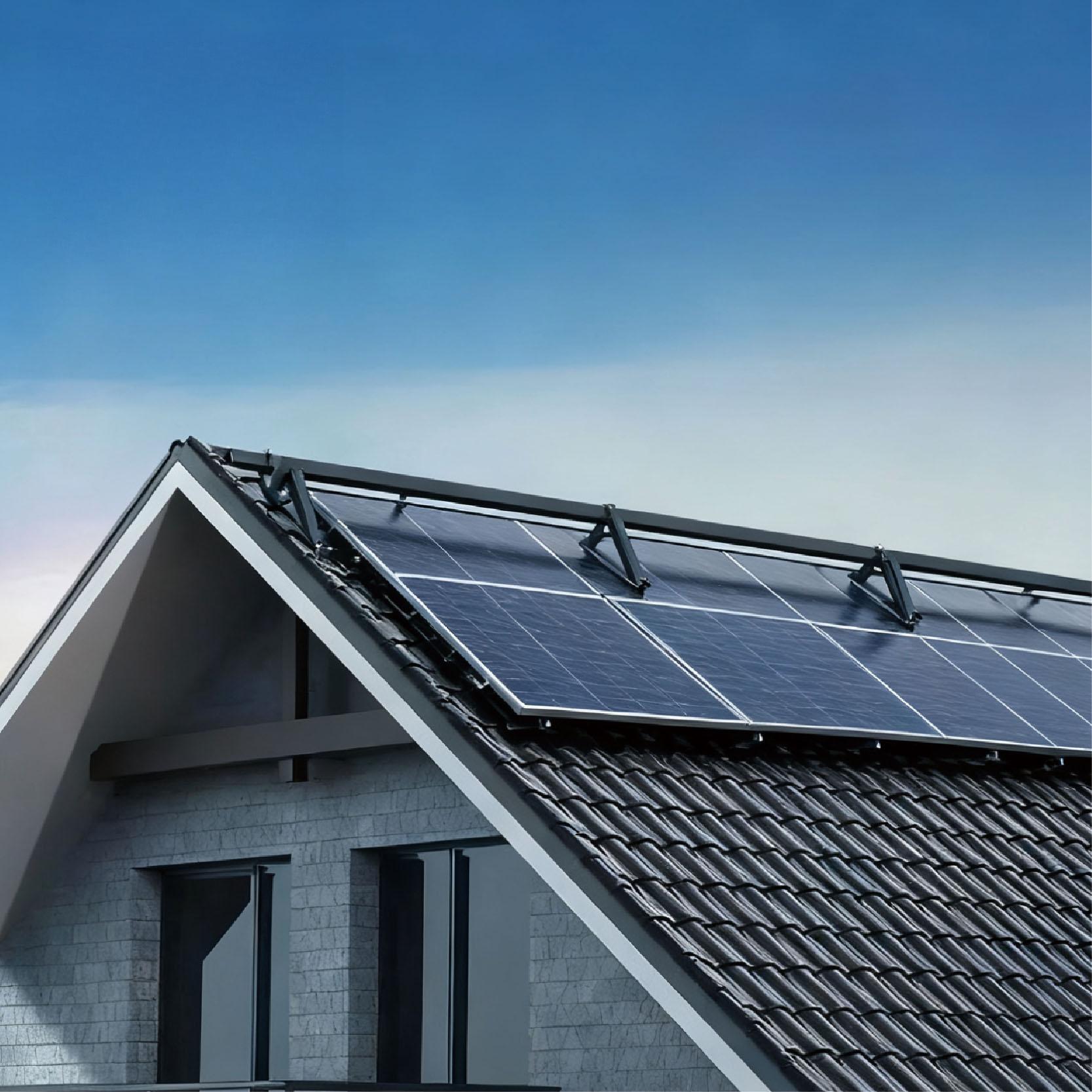

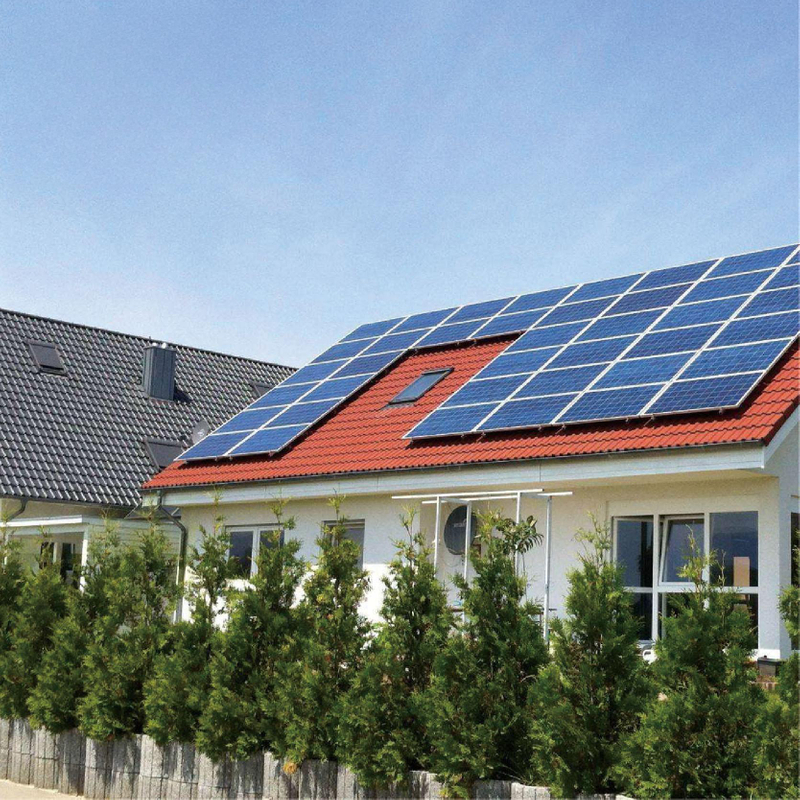

1. Residential House Rooftop Solar Systems

Widely used on villas and residential houses with tiled roofs, allowing safe and stable installation of solar panels without damaging roof tiles or waterproof layers.

2. Commercial & Small Business Buildings

Suitable for offices, shops, and small commercial buildings with tile roofs, providing reliable solar panel support while maintaining the original roof appearance.

3. Public Buildings with Tiled Roofs

Applied to schools, community centers, and public facilities, enabling clean energy generation on traditional tiled roofs with high safety and durability.

4. Renovation & Retrofit Solar Projects

Ideal for existing tiled roofs in renovation projects, allowing solar system installation without major roof modification or tile replacement.

>> Product Operate Guide

1. Roof Inspection & Layout Marking

Check the tile roof condition and roof structure, then mark the installation positions according to the PV layout and load calculation.

2. Install Roof Hooks

Carefully lift or remove tiles at marked positions and fix stainless steel roof hooks to the rafters or concrete structure, ensuring firm anchoring and waterproof sealing.

3. Reinstall Tiles & Adjust Hooks

Place the tiles back into position and adjust hook height to ensure tiles sit naturally without stress or cracking.

4. Mount Rails & Connectors

Fix aluminum rails onto the roof hooks, align them accurately, and secure all connectors and fasteners.

5. Install Solar Panels

Place photovoltaic panels onto the rails, fix them with mid clamps and end clamps, and ensure proper spacing and alignment.

6. Final Inspection

Check fastening torque, waterproof performance, and overall system stability before completing the installation.

>> FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%.

Q2. Does the bracket require additional anti-corrosion treatment?

A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3. Can you provide a load-bearing calculation report?

A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5. Payment method and warranty period?

A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage)
