>> Product Advantage
1. High Solar Gain and Energy Efficiency
The single slope design is optimized to capture maximum sunlight, improving natural heating and reducing energy consumption, making it suitable for regions with strong solar resources.
2. Cost-Effective Structure Design
With fewer structural components and a simplified framework, this greenhouse significantly reduces material and construction costs without compromising basic performance.
3. Easy Installation and Low Maintenance
The straightforward structure allows quick assembly and minimal technical requirements, helping reduce labor time and long-term maintenance costs.
4. Space Optimization and Flexible Integration
Often attached to existing buildings, it makes efficient use of limited land and improves heat utilization from adjacent structures.
5. Wide Crop Adaptability and Practical Use
This greenhouse supports a variety of crops, including vegetables, flowers, and seedlings, meeting diverse agricultural production needs.
>> Technical Parameters
| Single Slope Greenhouse | |||
| Building Materials | Steel-Plastic | Span | single |
| Frame Material | Hot Galvanized Steel | Layer | single |
| Light Transmittance Rate | More Than 90% | Covering Material | Po/PE film |
| Span width | 6m/8m/9.6m/10m/12m/customized | Wind load | 0.25-2KN/m2(According to the specific situation) |
| Section width | 3m/4m/5m/customized | Snow accumulation | 0.25-2KN/m2(According to the specific situation) |
| Height of the quarry | 3m/4m/5m/customized | Planting interest-bearing load | 0.25-2KN/m2(According to the specific situation) |
| Ridge height | 3m/4m/5m/customized | ||
>> Product Uses
1. Backyard and Small-Scale Farming
Ideal for home gardens and small farms with limited space, this greenhouse provides a simple and efficient growing environment.
2. Building-Attached Cultivation Projects
Commonly installed against existing buildings, it utilizes wall support and improves heat retention.It is applicable in cases where the land area is limited.
3. Vegetable and Herb Production
Widely used for growing vegetables and herbs under protected conditions, ensuring stable growth. Suitable for single slope greenhouse for vegetable cultivation, herb growing lean to greenhouse structure, controlled environment crop production system, and high efficiency farming greenhouse solution.
4. Nursery and Seedling Cultivation
Provides a stable and protected environment for seedling growth and plant propagation for improving survival rates and growth quality.
5. Urban Agriculture and Eco Farming Projects
Applied in urban farming and sustainable agriculture initiatives, it helps maximize space usage and reduce energy consumption.
>> Product Operate Guide
1-Site Preparation & Line Marking
Mark out lines horizontally and vertically for the ground-inserted greenhouse. Drill holes at 1-meter intervals, with the depth matching the required embedding length of the main frame.
2-Material Delivery & Assembly
Transport all materials to the site and pre-install the elliptical clamps in accordance with the greenhouse design.
3-Frame Erection & Levelling
After assembling all elliptical clamps, erect the main frame, connect the tie rods, and use a spirit level to adjust and ensure horizontal alignment.
4-Frame Grouting & Support Installation
Backfill the base of the frame with concrete, then erect the support columns, along with the column girders and diagonal braces.
5-Clamping Channel Installation for Air Vents
Once the concrete has set, install the clamping channels for the side and roof air vents.

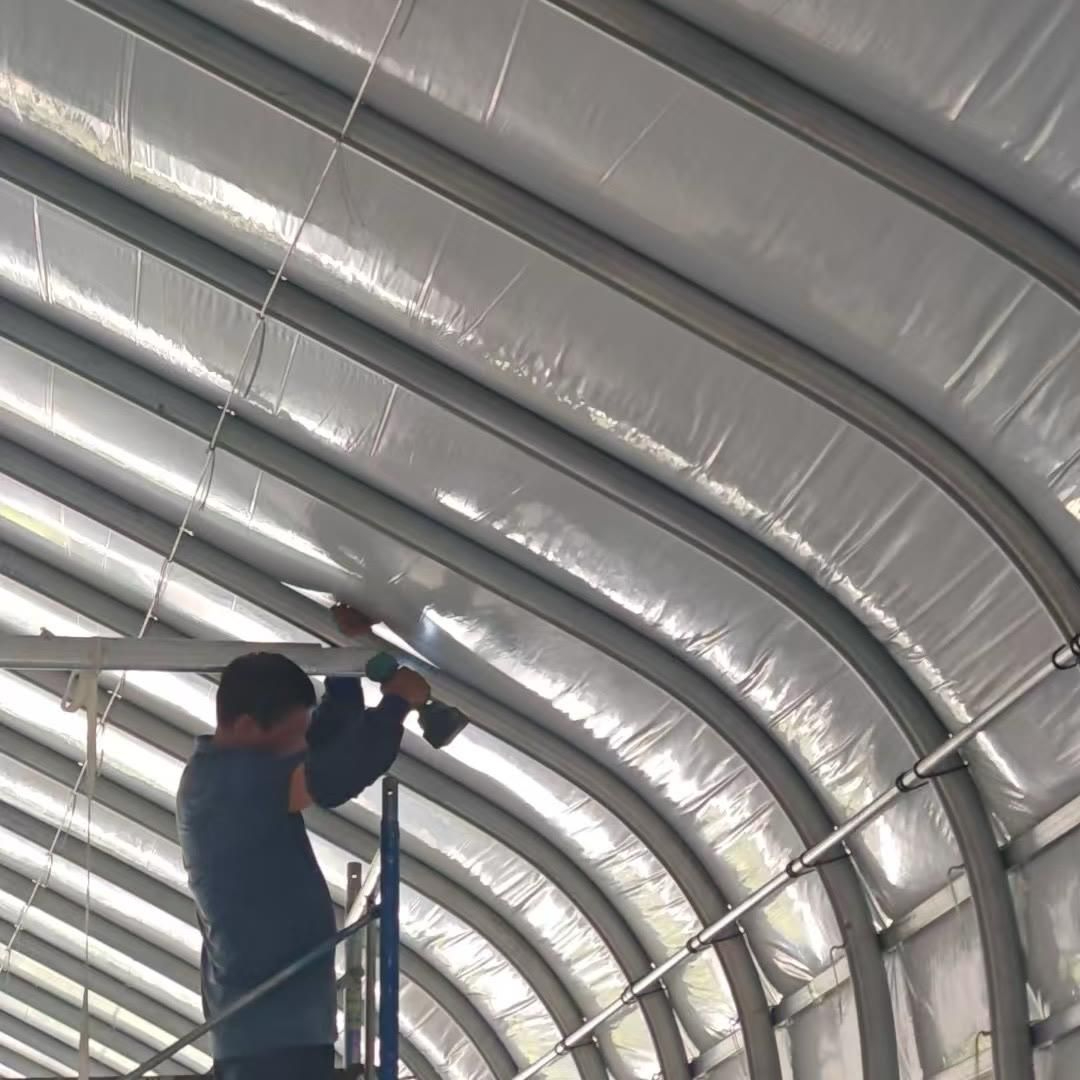

6-Greenhouse Film Installation
Cover the frame with the greenhouse film and secure it firmly in the clamping channels using spring clips.
7-Insulation Blanket & Winder Installation
Fit the insulation blankets, weld the blanket-rolling rods, install the blanket winders, and fasten the blankets in place.
8-Film Roller Installation & Commissioning
Mount the film rollers, test the operation of the insulation blankets and the film air vents. The entire greenhouse construction is then completed."
>> FAQ
Q1: What is the minimum order quantity (MOQ)?
A: The MOQ is one set. Each double layer warm greenhouse is usually produced based on project size, making it suitable for both small trial orders and large agricultural projects.
Q2: Is installation support provided?
A: Yes. We provide detailed installation drawings, layout plans, and step-by-step assembly instructions.
Q3: How is the greenhouse packed and shipped?
A: Steel structures are packed in bundles, and double-layer films are packed in protective rolls or cartons. The greenhouse is suitable for container shipping, including 20GP, 40GP, and 40HQ containers.
Q4.Payment method and warranty period?
A:Accept TT/LC, with a 15 year warranty (free replacement for non-human damage).
