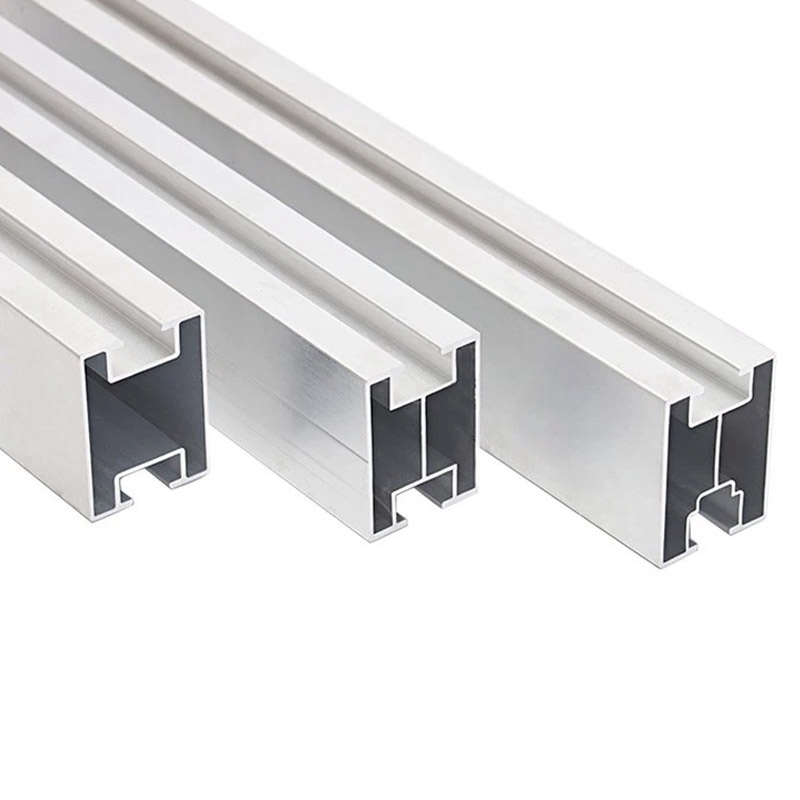

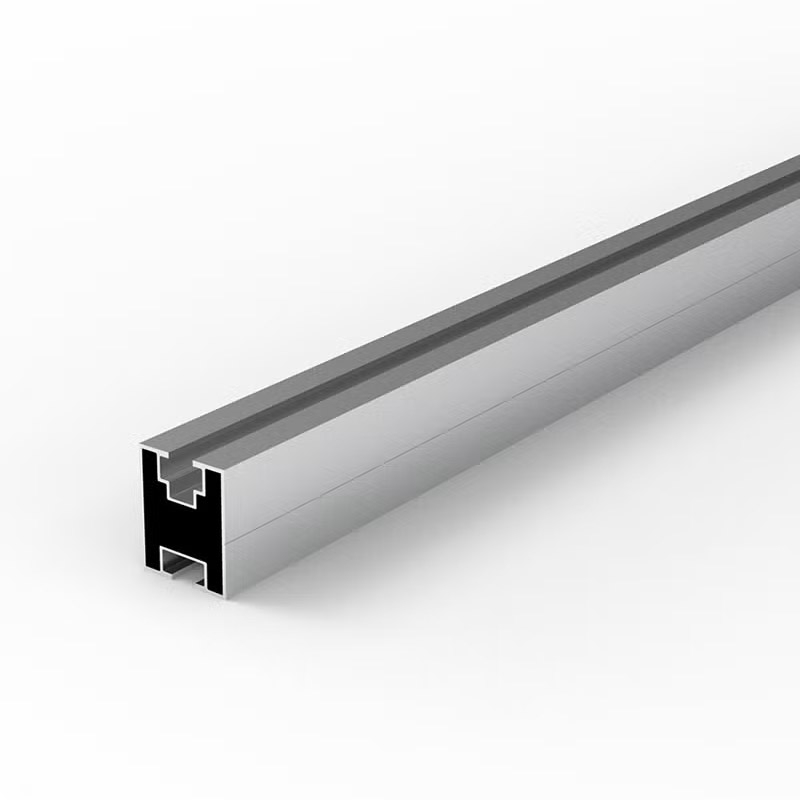

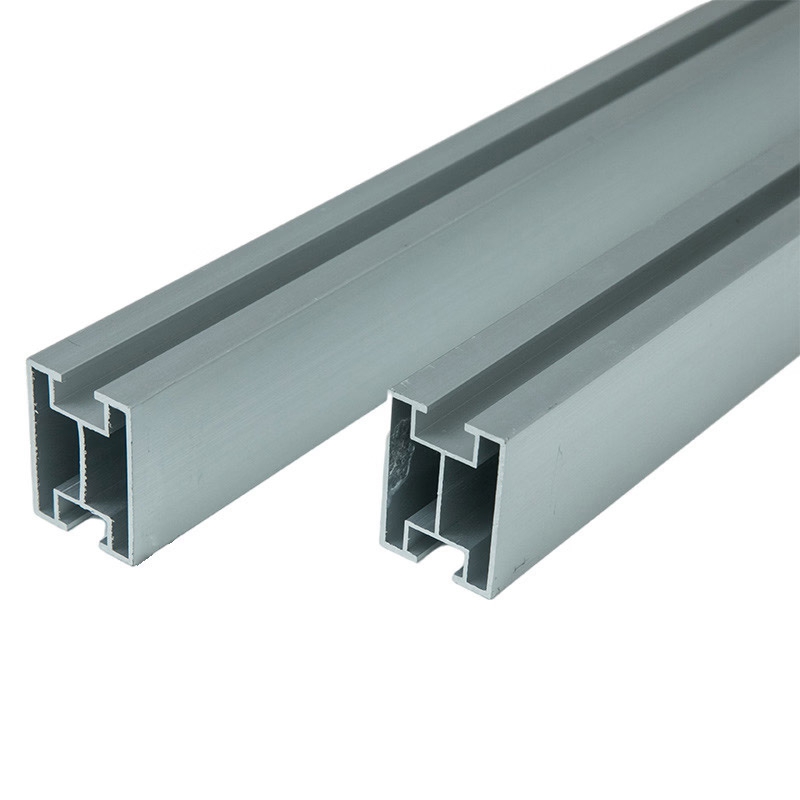

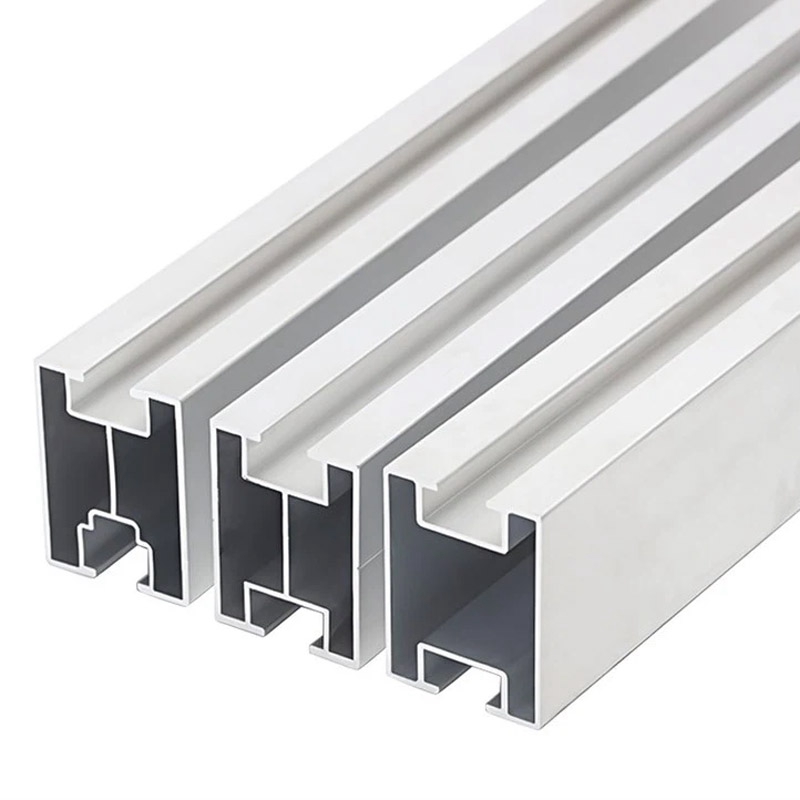

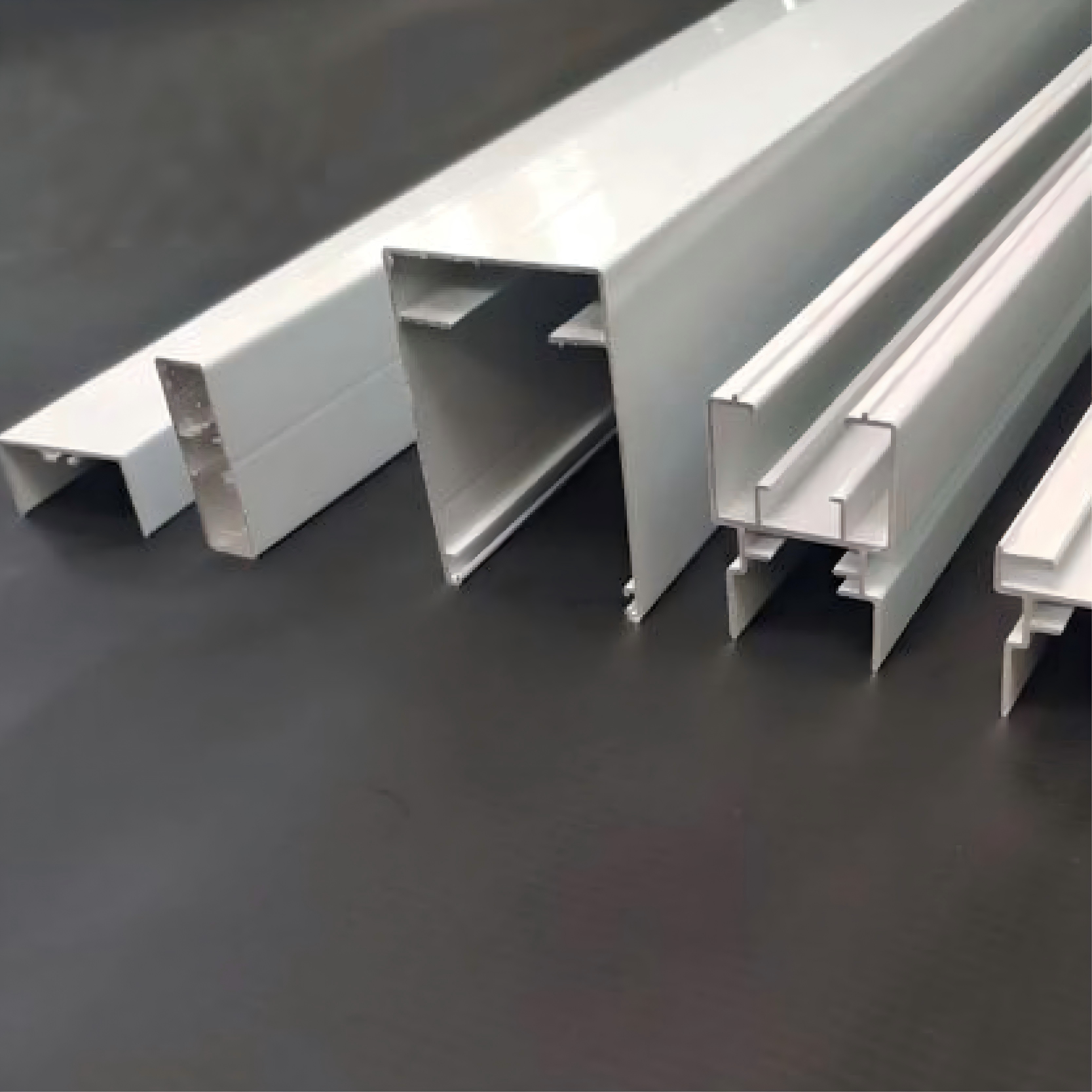

Solar PV Rail

>> Product Advantage

1. High-Strength Structural Support

Solar PV Rail is engineered with reinforced structural design to provide stable and secure support for photovoltaic modules. It delivers excellent load-bearing performance under wind and snow pressure.

2. Excellent Corrosion Resistance

Manufactured from anodized aluminum alloy or galvanized steel, the rail offers superior resistance to rust, moisture, and UV exposure.

3. Easy & Fast Installation

The modular rail design enables quick assembly and reduces installation time and labor costs. Compatible with various clamps and mounting accessories.

4. Wide Compatibility with Solar Systems

Solar PV Rail supports different photovoltaic module sizes and roof structures, including metal roofs, tile roofs, and ground-mounted systems.

5. Lightweight Yet Durable Design

The lightweight profile reduces roof load while maintaining excellent mechanical strength and long-term durability.

6. Flexible Customization Options

Available in various lengths, thicknesses, and profile types to meet different project requirements.

>> Technical Parameters

>> Product Uses

• Residential Rooftop Solar Systems

  Used in home rooftop photovoltaic installations to securely support solar panels, ensuring stable structure, corrosion resistance, and long-term energy generation efficiency in compact residential environments.

• Commercial & Industrial Rooftops

  Widely applied in factories, warehouses, and commercial buildings, providing strong load-bearing support for large-scale solar arrays and improving rooftop space utilization.

• Solar Carport Systems

  Essential structural component for PV carports, supporting panels while ensuring stability under wind and rain, suitable for parking lot solar energy projects.

• Ground-Mounted Solar Farms

  Used in utility-scale solar farms to build stable panel mounting structures, ensuring durability and alignment under harsh outdoor conditions.

• Agricultural Solar Greenhouses

  Applied in agricultural PV systems, supporting solar panels above greenhouses while maintaining light transmission and structural stability for farming environments.

• BIPV Integrated Buildings

  Used in building-integrated photovoltaic systems to combine structural support and architectural design, enabling efficient and aesthetic solar energy solutions.

>> Product Operate Guide

1. Site Survey & System Design

Confirm roof type, load capacity, and solar layout. Measure installation area and design rail spacing according to photovoltaic module size and wind/snow load requirements.

2. Material Preparation

Prepare Solar PV Rails, rail connectors, mid clamps, end clamps, roof hooks or brackets, bolts, and grounding accessories. Ensure all components match the PV system design.

3. Fix Mounting Base Structure

Install roof hooks, brackets, or ground supports according to the structure type. Ensure all fixing points are level, stable, and aligned with the design drawing.

4. Install Solar PV Rails

Place and fix the rails onto the mounting base. Use bolts or rail connectors to join multiple sections, ensuring straight alignment and continuous structural support.

5. Adjust Alignment & Spacing

Check rail spacing and alignment to ensure compatibility with solar panels. Adjust positions if necessary to maintain uniform module installation layout.

6. Install Solar Panels

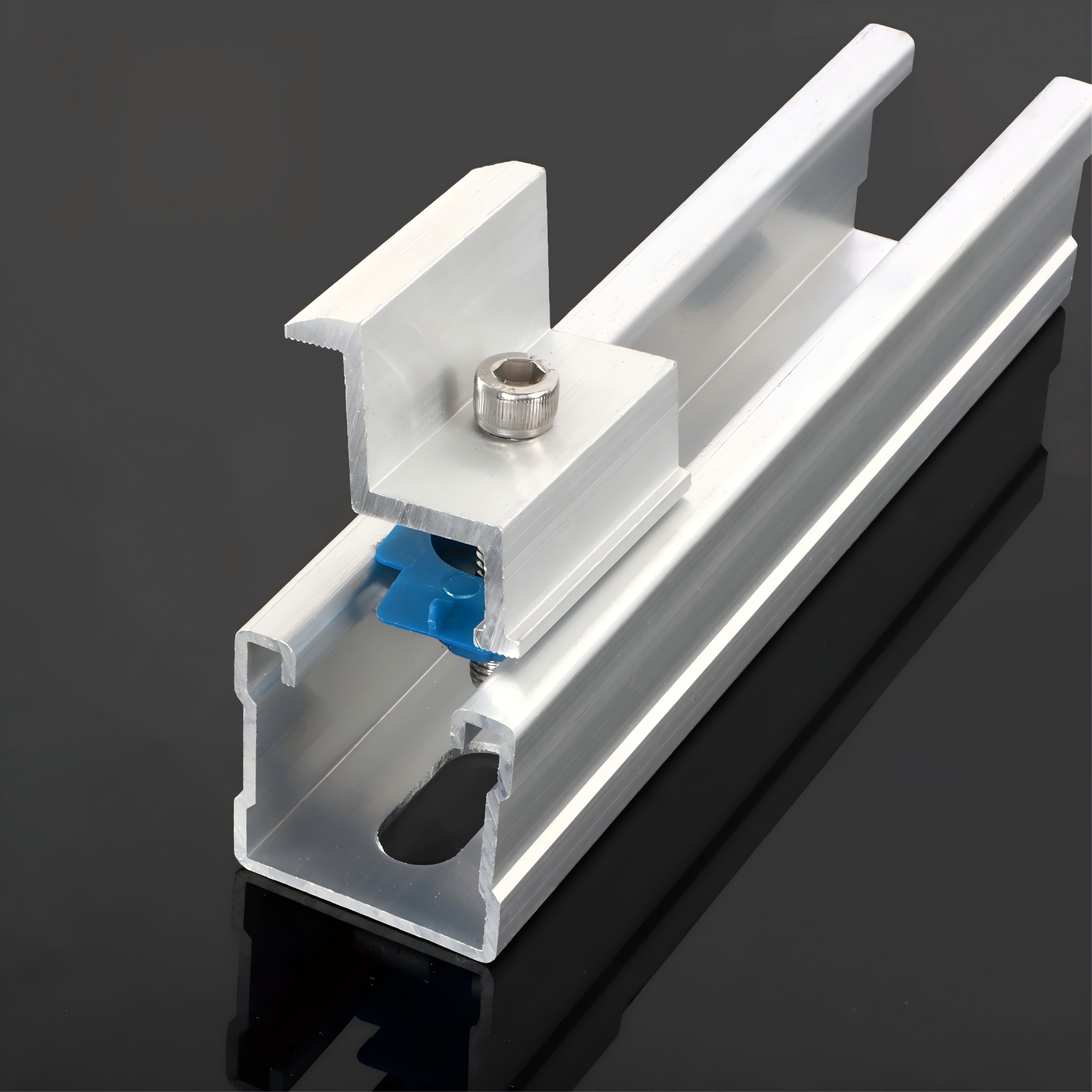

Place photovoltaic modules onto the rails and secure them using mid clamps and end clamps. Ensure tight and stable fixing without damaging the panels.

7. Grounding & Safety Connection

Connect grounding accessories to ensure electrical safety. Verify all metal parts are properly grounded to avoid lightning or leakage risks.

8. Final Inspection & Testing

Check all bolts, clamps, and rail connections. Confirm structural stability and perform a system inspection before commissioning the solar installation.

>> FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%

Q2. Does the bracket require additional anti-corrosion treatment?

A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3. Can you provide a load-bearing calculation report?

A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5. Payment method and warranty period?

A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage.)"
