Single Column Piling Ground Mounting System

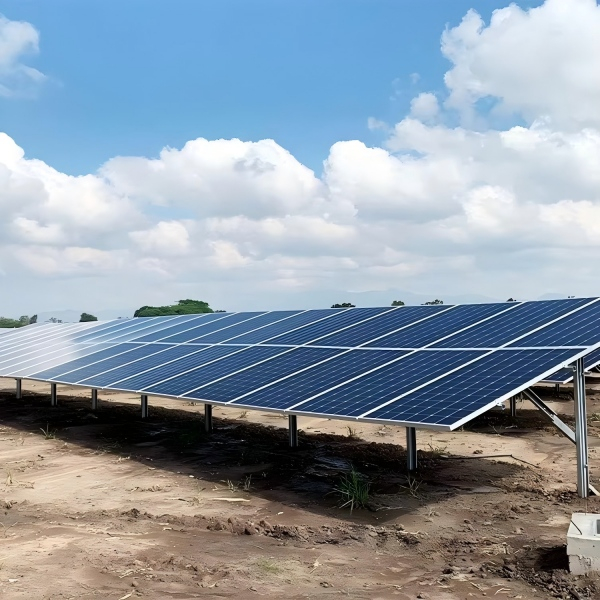

Single Column Piling Ground Mounting System is a reliable and efficient ground-mounted solar solution designed for residential, commercial, and utility-scale photovoltaic projects. Featuring a single-column structure and pile-driven foundation, the system provides stable support for solar panels while reducing the need for traditional concrete foundations.
The system is manufactured from high-strength, corrosion-resistant materials to withstand outdoor conditions such as wind, rain, and long-term UV exposure. Its streamlined single-post design reduces structural components and simplifies installation, helping improve construction efficiency and reduce overall installation time.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Ground Mount Solar System

Product Applications

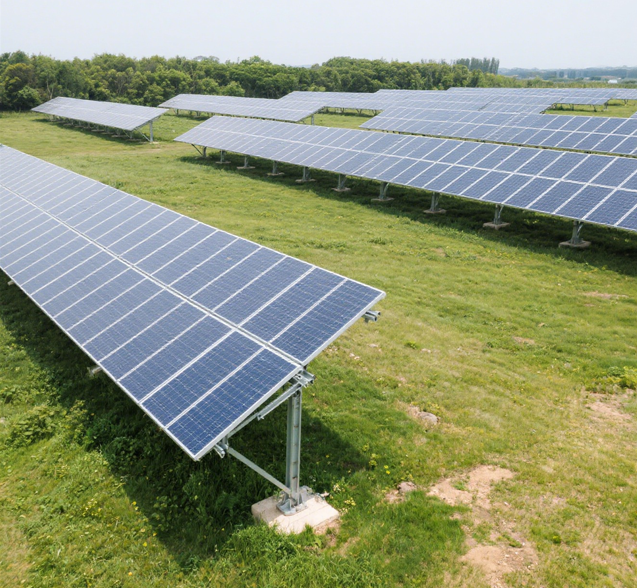

Solar Farms

Household installation system

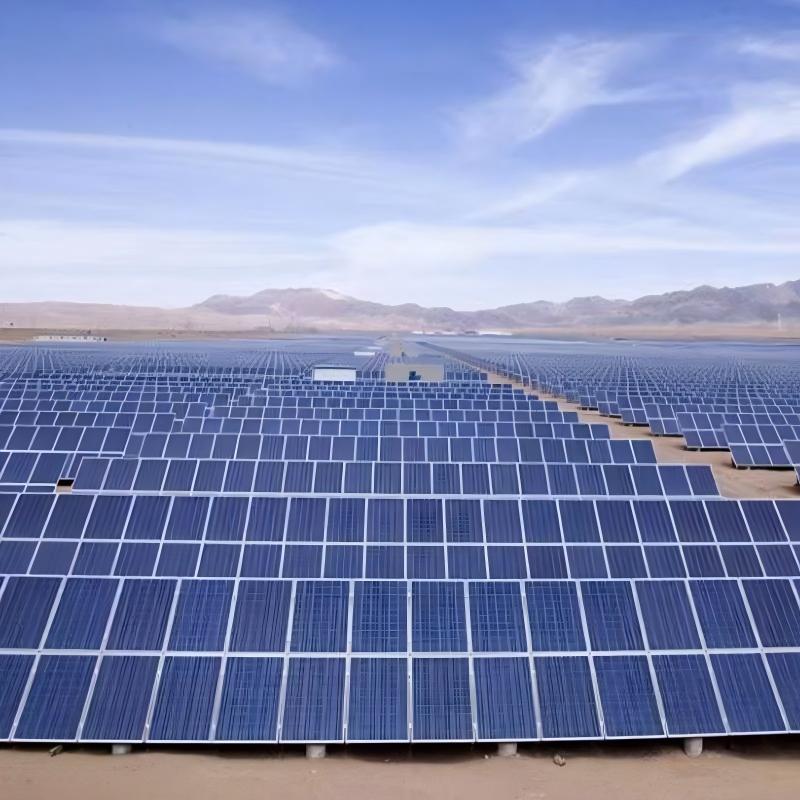

Large-Scale Ground-Mounted PV Systems

Field-installed system

Product Specifications

Installation Site

Ground

Angle

0-45°

Construction Height

<9m

Material

Carbon Steel & Alloy Steel

Color

Silver or customized

Surface Treatment

Hot-dip galvanized or ZAM coated

Maximum Wind Speed

<60m/s

Maximum Snow Cover

<200cm

Warranty

15 Years

Foundation

Pile foundation

Our Advantages

45000+㎡

Factory Covers

10 +Years

Production Experience

100 +

Countries and Regions

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

Specialized Production

It has fully automated production lines including CNC cutting, laser cutting processing, and welding.

Design customization

We have an excellent technical team, which can be designed according to customers requirements.

FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A:Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%.

Q2. Does the bracket require additional anti-corros ion treatment?

Q3. Can you provide a load-bearing calculation report?

Q4. Do you accept sample orders?

Q5.Payment method and warranty period?
