>> Product Advantage
High-Strength Steel Structural System
The carport adopts hot-dip galvanized steel, ensuring excellent load-bearing performance and long-term stability.
Advanced PVDF/PTFE Membrane Roofing
The roofing system uses high-performance PVDF /PVC/PTFE architectural membrane, offering strong tensile strength, UV resistance, and weather durability.
Excellent Weather Resistance Performance
Designed for harsh outdoor environments, the structure resists strong wind, heavy rain, snow load, and corrosion.
Energy Saving & Heat Reduction Design
The membrane material effectively blocks UV rays and reduces heat accumulation under the canopy, creating a cooler parking environment.
Fast Installation & Modular Design
Prefabricated steel components allow quick assembly and efficient installation, reducing construction time and labor cost.
>> Technical Parameters
| Structure Type | arch/flat/etc. (customized) | Membrane Type | PVDF / PTFE / PVC architectural membrane |
| Main Frame Material | Hot-dip galvanized steel | Thickness | 0.6 mm - 1.2 mm |
| Surface Treatment | spray lacquer / stoving varnish/Hot-dip galvanizing | UV Resistance | High UV protection, anti-aging |
| Wind Load | 0.6 - 1.0 kN/m2 (customizable) | Parking Capacity | 1/2/etc. vehicles (project-based design) |
| Snow Load | 0.3 - 0.8 kN/m2 (based on reglon) |
>> Product Uses

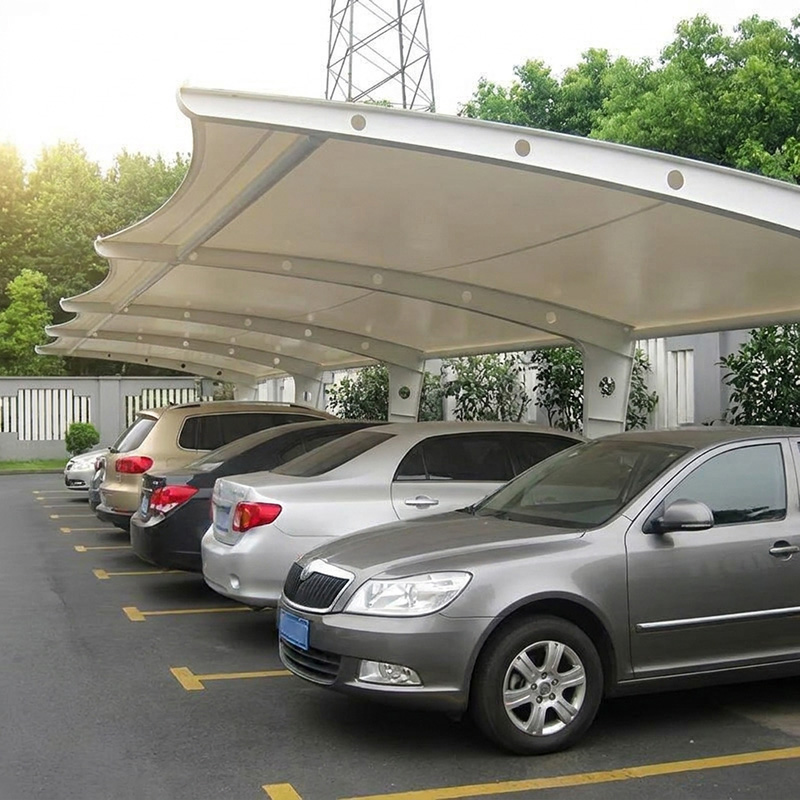

Residential Parking Areas
Used in apartment complexes and villas to provide safe, weather-protected parking for private vehicles.
Shopping Malls & Commercial Centers
Offers convenient and stylish parking shelters for customers in retail and commercial complexes.
Industrial Parks & Factories
Protects employee and company vehicles from sun, rain, and dust in industrial environments.
Hospitals & Schools
Provides organized parking solutions for staff, visitors, and students in public institutions.
Public Parking Lots
Ideal for large-scale urban parking areas requiring durable and efficient shelter systems.
Transportation Hubs
Used in airports, railway stations, and bus terminals for high-capacity vehicle parking protection.
>> Product Operate Guide
1.Site Preparation
Level the ground and mark the installation layout according to the design drawings.
2.Foundation Work
Build concrete foundations and install anchor bolts for steel columns.
3.Steel Frame Installation
Assemble and fix the galvanized steel structure, including columns and beams.
4.Membrane Installation
Lay and fix the membrane material onto the steel frame, then connect fastening points.
5.Tension Adjustment
Adjust and tighten the membrane to ensure a smooth, stable surface.
6.Final Inspection
Check all connections, structure stability, and membrane tightness before use.
>> FAQ
Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?
A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%
Q2. Does the bracket require additional anti-corrosion treatment?
A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.
Q3. Can you provide a load-bearing calculation report?
A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.
Q4. Do you accept sample orders?
A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.
Q5. Payment method and warranty period?
A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage.)"
