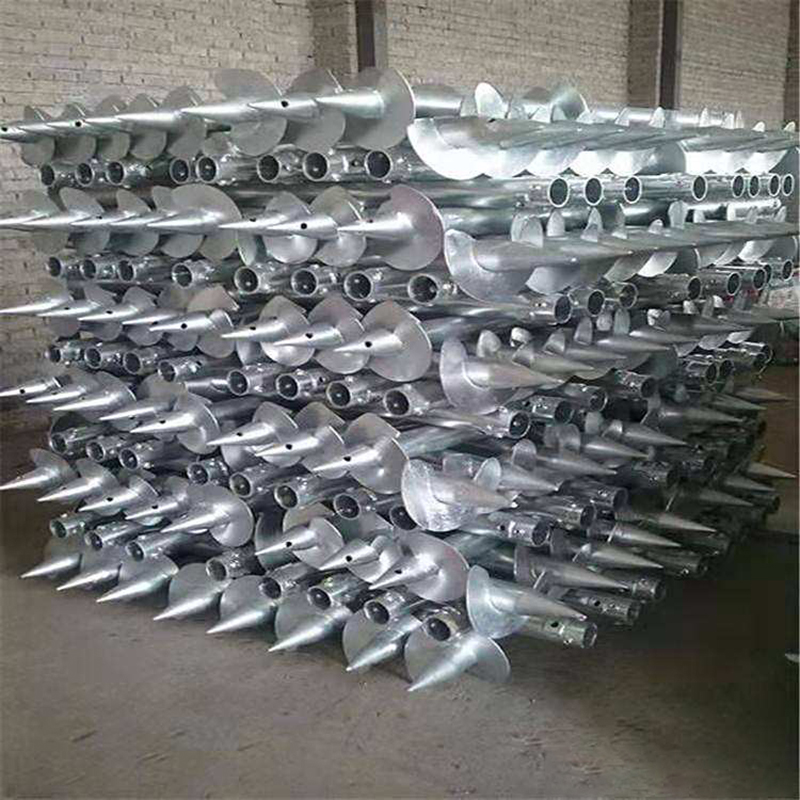

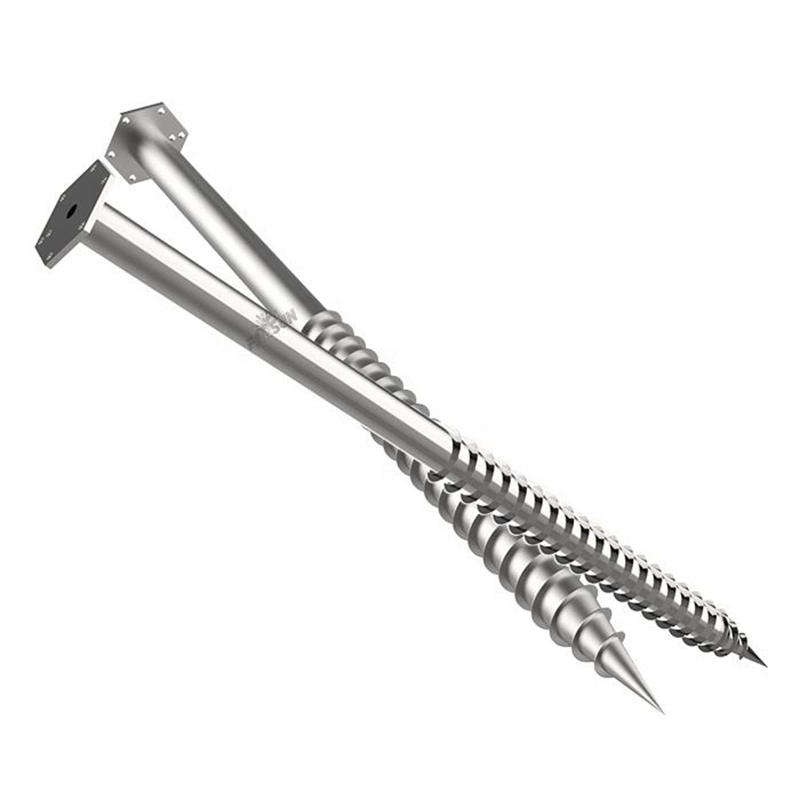

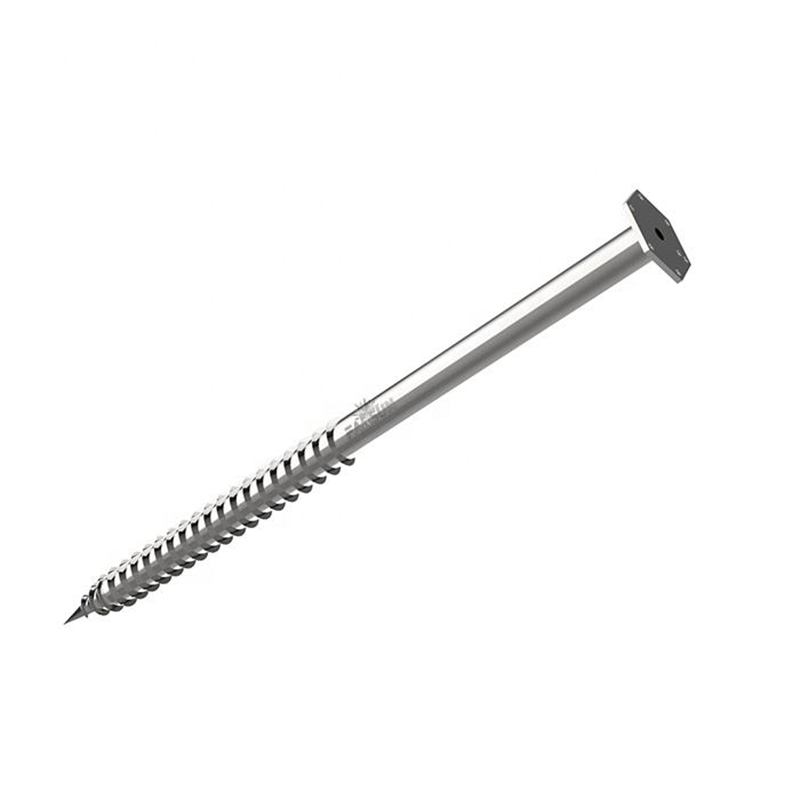

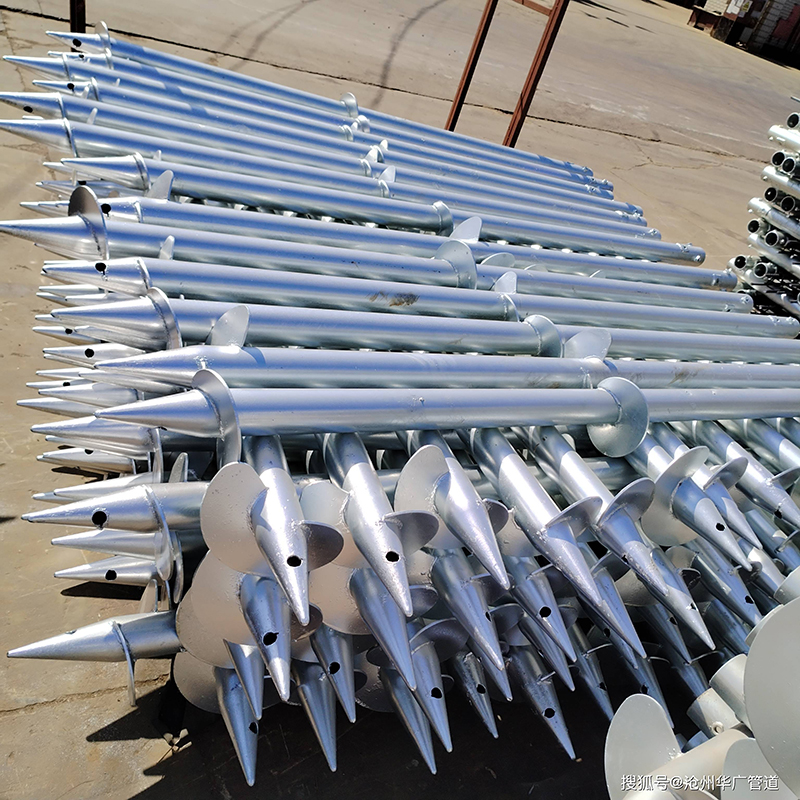

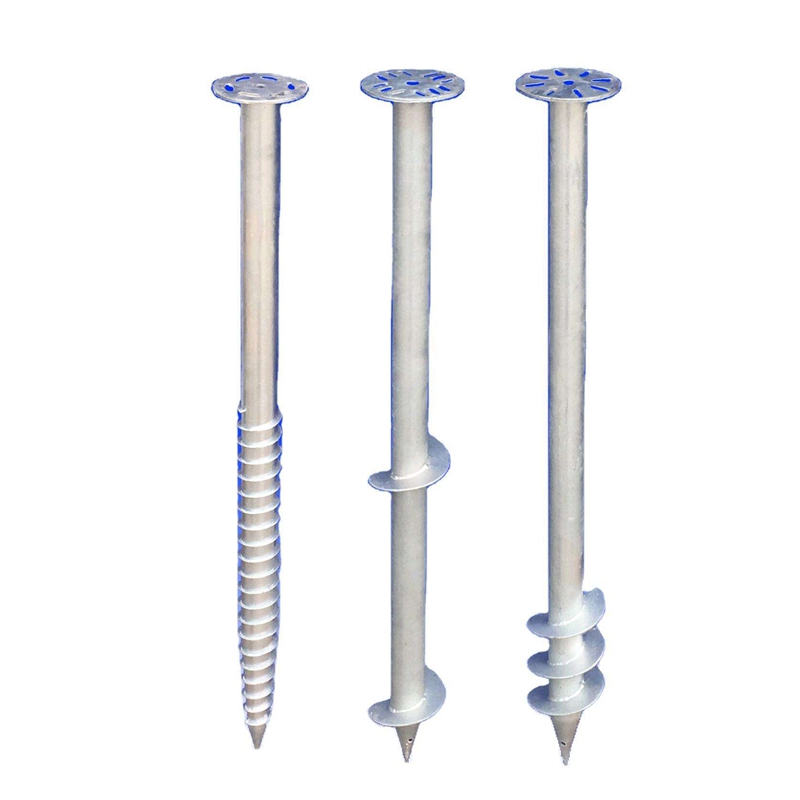

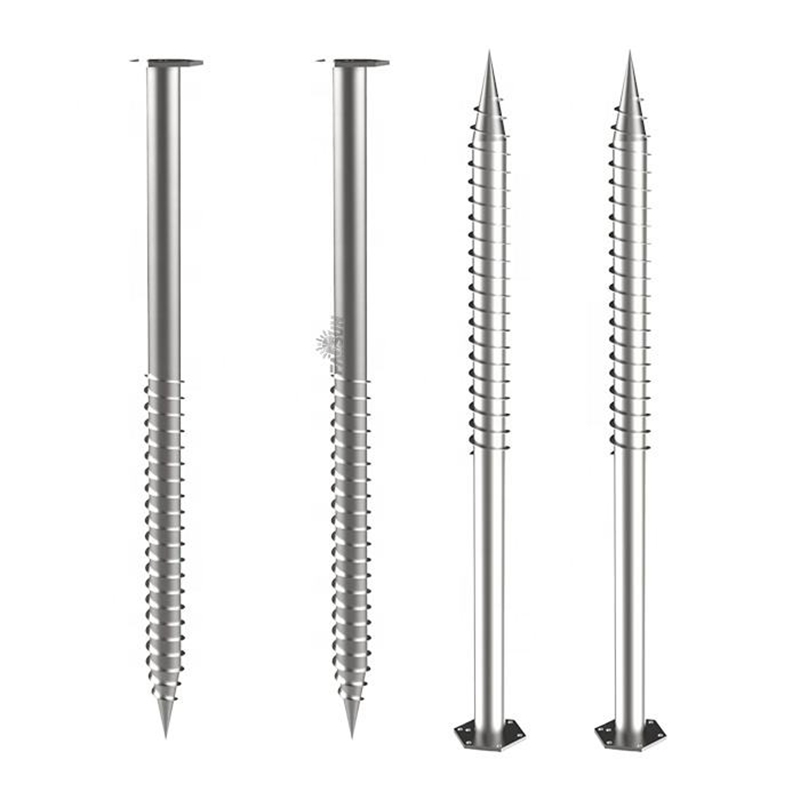

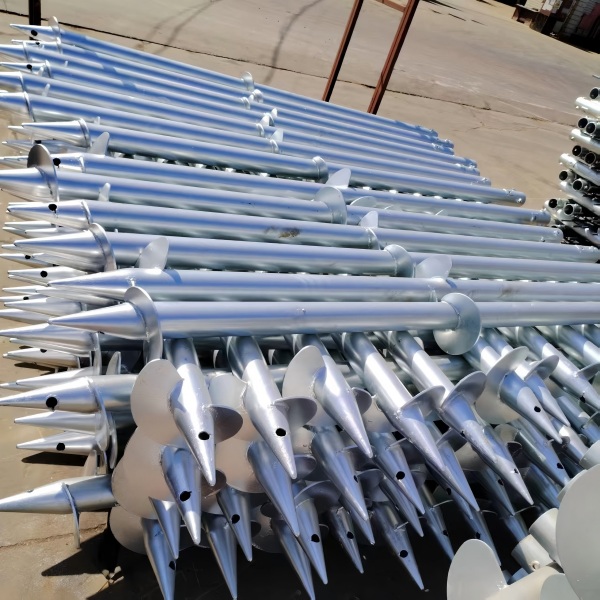

Ground Screw

>> Product Advantage

1. Fast Installation & High Construction Efficiency

Ground Screw uses a helical screw-in installation method that requires no excavation or concrete curing, allowing immediate load-bearing performance. It significantly shortens project timelines and reduces labor costs.

2. High Load-Bearing Structural Strength

Manufactured from high-quality carbon steel, the screw pile features optimized helical blade geometry for excellent pull-out resistance and compression strength. It ensures long-term structural stability in various soil conditions.

3. Hot-Dip Galvanized Corrosion Protection

The surface is treated with hot-dip galvanizing technology, providing strong resistance to rust, moisture, and harsh outdoor environments. This extends service life and reduces maintenance costs, widely applied in hot dip galvanized ground screw pile system, corrosion resistant steel ground anchor foundation, and long lifespan outdoor screw foundation solution.

4. Eco-Friendly & Concrete-Free Foundation Solution

Ground Screw eliminates the need for excavation and concrete, reducing soil disturbance and carbon emissions. It supports sustainable construction practices and can be reused in some applications.

5. Multi-Application & Strong Compatibility

Designed for versatile use, Ground Screw supports solar PV systems, greenhouses, timber structures, and temporary buildings with flexible installation options.

>> Technical Parameters

>> Product Uses

1. Solar PV Ground Mounting Systems

Used as a stable foundation for solar panels in utility-scale and commercial projects, ensuring fast installation and strong wind resistance.

2. Agricultural Greenhouses

Provides reliable base support for film and steel-frame greenhouses, suitable for uneven farmland and soft soil conditions.

3. Carports & Parking Structures

Ideal for solar carports and shading structures, offering a quick and concrete-free foundation solution.

4. Wooden Decks & Outdoor Platforms

Used for terraces, boardwalks, and garden structures, ensuring stable and durable ground anchoring.

5. Temporary Event Structures

Perfect for tents, exhibition booths, and temporary buildings, allowing fast installation and easy removal.

6. Fencing & Boundary Systems

Provides strong support for fence posts in agricultural, residential, and industrial perimeter installations.

>> Product Operate Guide

1. Site Survey & Positioning

Before installation, mark the exact positions according to the foundation layout drawing. Check soil conditions and ensure there are no underground obstacles such as rocks, pipes, or cables.

2. Select Appropriate Ground Screw Type

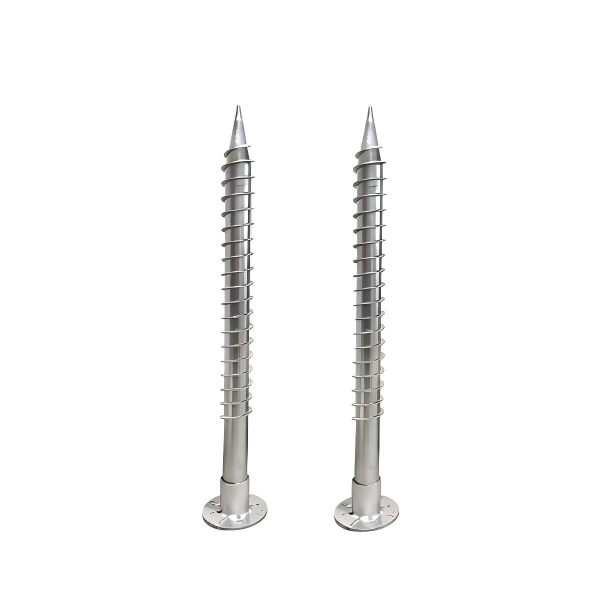

Choose the correct length, diameter, and flange type based on load requirements and soil conditions to ensure safe and stable performance for the structure.

3. Screw Pile Installation

Use a hydraulic or manual pile driver to rotate the Ground Screw vertically into the soil. Maintain alignment and depth according to design specifications to achieve optimal load-bearing capacity.

4. Alignment & Level Adjustment

After installation, adjust the height and flange level to ensure all screw piles are in a consistent horizontal plane for stable structural connection.

5. Structural Connection Fixing

Fix steel frames, brackets, or mounting systems onto the Ground Screw flange using bolts, ensuring tight and secure connections.

6. Final Inspection & Load Check

Inspect installation accuracy, torque resistance, and vertical alignment to confirm the foundation is stable and ready for structural loading.

>> FAQ

Q1. What is the difference between galvanized aluminum magnesium steel and ordinary galvanized steel?

A: Aluminum magnesium coating significantly improves corrosion resistance, especially suitable for high salt spray and acid rain areas, with a lifespan extension of more than 50%

Q2. Does the bracket require additional anti-corrosion treatment?

A: No need! The coating and passivation treatment have been completed before leaving the factory, and it can be used directly.

Q3. Can you provide a load-bearing calculation report?

A: We can provide third-party inspection reports along with the goods and support customized wind/snow load analysis for the project.

Q4. Do you accept sample orders?

A: Support! 3 sets minimum order, shipped within 7 days, sample fee can be deducted from bulk order.

Q5. Payment method and warranty period?

A: Accept TT/LC, with a 15 year warranty (free replacement for non-human damage.)"
