For structural engineers and fabricators, specifying building materials goes far beyond merely matching dimensions on a blueprint. It demands a delicate balance. You must weigh load-bearing integrity against project budgets and onsite assembly timelines. Selecting the exact material grade and processing method dictates structural behavior. This choice directly impacts the overall strength-to-weight ratio. It cascades into shipping logistics, structural longevity, and fabrication complexity. If you get it wrong, you risk significant project delays or bloated material expenses.
This guide breaks down standard dimensions, common ASTM classifications, and application-specific structural behaviors. You will also uncover critical procurement pitfalls. These insights ensure you source the most efficient material for your next major project. We detail exactly what you need to know. You will learn to avoid costly engineering missteps and optimize your structural designs from day one.
Size Classification: Angle steel is categorized strictly by leg length; sections under 3 inches are "Bar Sizes" (light duty), while 3 inches and above are "Structural Sizes" (heavy load-bearing).
Grade Efficiency: Upgrading from standard ASTM A36 to high-strength low-alloy (HSLA) A572-50 yields approximately a 39% increase in structural strength, often allowing for lighter, cost-saving designs.
Engineering Red Flags: Despite a low "cost per meter," angle steel has a lower "strength per kg" compared to tubular steel, requiring careful evaluation of transportation costs and compression buckling risks.
Processing Impact: Opting for value-added supplier services—like CNC coping or rapid galvanizing—drastically reduces onsite assembly delays.
Understanding how the industry categorizes dimensions prevents costly ordering mistakes. Engineers use a standardized formula to communicate exact profiles. You must decode these numbers accurately to match material capabilities to your structural loads.

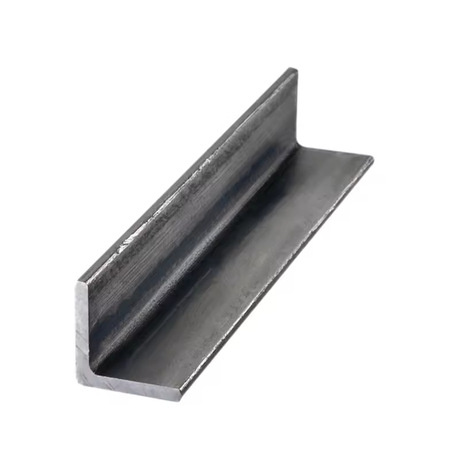

Vendors globally use a uniform naming convention. You will typically see a notation like L 4″ x 4″ x 1/2″. The letter "L" designates the shape. The first two numbers represent the lengths of the two intersecting legs. The final fraction dictates the material thickness. This simple formula tells you everything about the physical footprint of the profile. When reviewing angle steel sizes, remember the thickness dictates your ultimate weight calculation.
Fabricators divide these profiles into two main categories. They separate them strictly based on leg length dimensions.
Bar Angles: These feature leg lengths under 3 inches. Common examples range from 1/2″ up to 2-1/2″. You will use bar sizes primarily for light-duty tasks. They excel in framing, shelving, brackets, and handrails.
Structural Angles: These feature leg lengths of 3 inches and greater. They feature thicker walls to handle massive stress. You must specify structural sizes for any significant load-bearing infrastructure.
You can specify profiles with either equal or unequal legs. Equal legs provide uniform resistance in intersecting planes. They offer symmetrical support for standard corners. Unequal angles allow for precise directional load optimization. You use unequal legs where space restrictions apply. They also help reduce overall dead weight by shedding unnecessary material on the non-load-bearing side.
Many junior specifiers fall into a common engineering pitfall. They solely evaluate leg length while completely ignoring material thickness. Thickness strictly governs the pounds-per-foot (lbs/ft) weight parameter. It also determines the ultimate tensile rigidity of the beam. If you specify a 4-inch leg with a very thin wall, it will easily twist under a heavy load. Always balance the length with an appropriate thickness to maintain structural integrity.
Dimension alone does not determine how a frame will perform. The underlying chemistry dictates yield strength, corrosion resistance, and workability. Selecting the proper angle steel grades ensures you meet code requirements without overspending.
ASTM A36 serves as the baseline for general construction. It features a 36 ksi yield strength and a 58-80 ksi tensile strength. Carbon content tops out at roughly 2.6%. This specific chemistry makes it highly machinable. You can weld it easily using standard equipment. It provides the most cost-effective solution for everyday fabrication needs.
When you need better longevity, consider A529-50. It upgrades your structural baseline with a 50 ksi yield strength. Steelmakers add approximately 0.2% copper to the melt. This copper addition drastically improves atmospheric corrosion resistance. It acts as an ideal choice for environments requiring a higher strength-to-weight ratio paired with baseline weather protection.
Engineers specify A572-50 for critical infrastructure. This High-Strength Low-Alloy (HSLA) grade delivers a 50 ksi yield strength and 65 ksi tensile strength. Manufacturers fortify it with columbium-vanadium micro-alloying elements. It delivers roughly a 39% strength increase over standard A36. Transportation sectors heavily utilize it. Transmission towers and bridges rely on it to shed dead weight safely.
Some environments quickly destroy carbon steel. In these cases, you turn to stainless alloys. We recommend 304L for standard indoor architectural exposure. It resists mild moisture perfectly. For marine, chemical, or severe outdoor environments, you must upgrade to 316L. The addition of molybdenum gives 316L exceptional pitting resistance against harsh chlorides.
ASTM Grade | Yield Strength | Tensile Strength | Key Alloy Addition | Primary Use Case |
|---|---|---|---|---|
A36 | 36 ksi | 58-80 ksi | Carbon (Max 2.6%) | General fabrication, cost-effective frames |
A529-50 | 50 ksi | 70-100 ksi | Copper (~0.2%) | Enhanced atmospheric durability |
A572-50 | 50 ksi | 65 ksi min | Columbium-Vanadium | Heavy duty, weight-reduction structures |
316L Stainless | 25-30 ksi | 70 ksi min | Molybdenum | Marine and severe chemical exposure |
This shape represents one of the most versatile elements in modern construction. The geometry uniquely distributes mechanical forces. Understanding the physics behind these steel angle applications helps you deploy them effectively.
The magic lies in the 90-degree intersecting planes. When two legs meet at a perfect right angle, they create immense rigidity along multiple axes. This geometry distributes horizontal and vertical stresses simultaneously. It resists bending far better than a flat bar of equal weight. This design allows the material to support loads exponentially heavier than its own physical mass.
Heavy industry relies on large structural angles to build critical frameworks. You will find massive unequal angles supporting bridge trusses. Warehouse roofs and wall skeletal frames use them as secondary support beams. Transmission towers utilize them almost exclusively due to their wind-shearing aerodynamics. Railway track supports also depend on their rigid geometry to maintain tight alignment under heavy vibration.
Manufacturing sectors consume millions of feet of bar-sized material annually. You encounter them constantly in everyday infrastructure.
Racking Systems: Warehouse pallet racks rely on them for rigid corner bracing.
Stair Stringers: They provide perfect 90-degree mounts for heavy stair treads.
HVAC Support Brackets: Contractors bolt them to ceilings to suspend heavy ductwork safely.
Commercial Furniture: Industrial-style desks and shelving use them for durable internal framing.
Modern architecture frequently leaves structural elements exposed. Manufacturing methods directly impact aesthetic applications. Standard hot-rolled manufacturing produces slightly tapered legs with rounded inside corners. They look industrial and rough. Conversely, laser-fused manufacturing yields incredibly sharp, square corners. Architects demand these crisp lines for Architecturally Exposed Structural Steel (AESS). Laser fusing allows for massive custom dimensions without visible weld seams.
Buying raw metal seems straightforward on paper. However, hidden costs and engineering blind spots routinely ruin project budgets. You must scrutinize your supply chain before issuing a purchase order for angle steel.
Purchasing managers love L-shaped profiles because they boast a very low cost per meter. Producing them requires less complex rolling than closed square tubing. However, you must recognize a hidden trade-off. Their asymmetrical shape means they have a lower "strength per kg" ratio than square tubing. You often must specify heavier, thicker legs to achieve the required load rating. This inadvertently drives up your gross weight. Heavier freight increases shipping fuel surcharges. It also inflates dip-tank costs during galvanizing.
The L-shape behaves incredibly well under tension. However, compression creates dangerous engineering challenges. The asymmetrical open section makes it highly susceptible to flexural-torsional buckling. When subjected to heavy compressive loads, the legs want to twist and bow outward.
Engineers developed a clever workaround for this buckling vulnerability. You simply weld a small extra piece of matching metal across the open bolt-hole ends. This quickly closes the "L" shape into a reinforced "box-section" profile at the connection joints. This minor onsite modification exponentially increases local rigidity and prevents twisting.
Smart project managers look beyond raw material prices. They frame supplier selection around "ready-to-assemble" capabilities. Sourcing bare metal forces your onsite crew to measure, cut, and drill manually. This causes massive labor bottlenecks. Instead, seek vendors offering CNC machining and coping. Request material that arrives pre-cut, pre-drilled, and pre-galvanized. Vendors with 24-hour rapid processing turnarounds eliminate costly site delays.
You cannot install bare carbon steel outdoors and forget it. Environmental moisture causes rapid oxidation. You must specify protective lifecycle coatings. Hot-dip galvanizing provides decades of zinc-based cathodic protection. Industrial painting systems offer aesthetic customization alongside moisture barriers. Prior to installation, always practice dry-storage. Keep the material elevated off the dirt and tarped tightly to prevent premature surface rusting.
Successfully integrating L-shaped profiles into your build requires strategic forethought. You must continuously align your exact load requirements with the correct material grade. Upgrading from A36 to A572-50 often allows you to optimize overall structure weight. This single decision reduces shipping burdens and eases crane operations.
Take time to audit your engineering blueprints before contacting a distributor. Review every connection point for potential buckling risks under compression. We encourage fabricators and project managers to consult their structural blueprints against vendor processing capabilities. Always ask your supplier about CNC cutting, precise coping, and rapid coating services. Leverage their automated equipment to reduce your manual labor. Reach out to a qualified vendor today to request an accurate, comprehensive quote for materials and services.
A: The most widely used dimension across general fabrication is 3″ x 3″ x 1/4″. Builders overwhelmingly specify this size in ASTM A36 grade. This specific combination provides an excellent balance of weldability, structural rigidity, and cost-effectiveness for everyday framing and bracing projects.
A: ASTM A572-50 features a minimum yield strength of 50 ksi, compared to the 36 ksi yield strength of standard A36. This difference translates to an approximate 39% increase in structural load capacity. Engineers exploit this added strength to design lighter, more efficient frameworks.
A: Hot-rolled manufacturing produces a slightly tapered profile with rounded inside corners, ideal for general hidden construction. Laser-fused manufacturing melts separate flat plates together without filler. This yields crisp, sharp 90-degree corners. Architects heavily prefer laser-fused shapes for exposed structural aesthetics and massive custom dimensions.
A: The open asymmetrical shape easily twists under heavy compressive loads. To prevent flexural-torsional buckling, fabricators employ a box-section technique. They weld a short, extra piece of angle across the open ends near connection points. This closes the profile, vastly improving localized rigidity and force distribution.
